PI3B3245

3.3V 8-Bit Bus Switch (FCT245 Pinout)

NOTE: Datasheet may not yet reflect updated package obsolescence/phase out status or Package Drawing. Please refer to the PRODUCT OPTIONS tab for the most up to date package options and drawings. Please refer to PCN/PDN tabs for most current package obsolescence/phase out status.
Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Description

The PI3B3245 is a 3.3V 8-bit, 2-port bus switch designed with a low On-Resistance (5-ohm) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Enable (BE) input signal.

Features

  • Near-Zero propagation delay
  • 5-ohm switches connect inputs to outputs
  • Fast Switching Speed: 4.5ns (max.)
  • Ultra-Low Quiescent Power (0.2μA Typical)
    • Ideally suited for notebook applications
  • TTL-compatible control of inputs levels
  • ESD protection (2kV Human Body Model and 200V Machine Model)
  • Packaging (Pb-free & Green):
    • 20-pin QSOP (Q)
    • 20-pin TSSOP (L)
    • 20-pin SOIC (S)

Product Specifications

Product Parameters

Configuration 8-Channel, 1:1
Differential Channels N/A
HotInsertion 0
Lanes N/A
OtherFeatures N/A
RailToRail 0
Signal Type Single Ended
Single Ended Channels 8
Type N/A
Voltage 3.3

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Additional Technical Documents are available upon request:
Application information, Evaluation board, and Other technical documents

Request Documents
Orderable Part Number Status Package Environmental Compliance Packing Buy from Distributor /
Contact Sales
Request Samples
Qty. Carrier

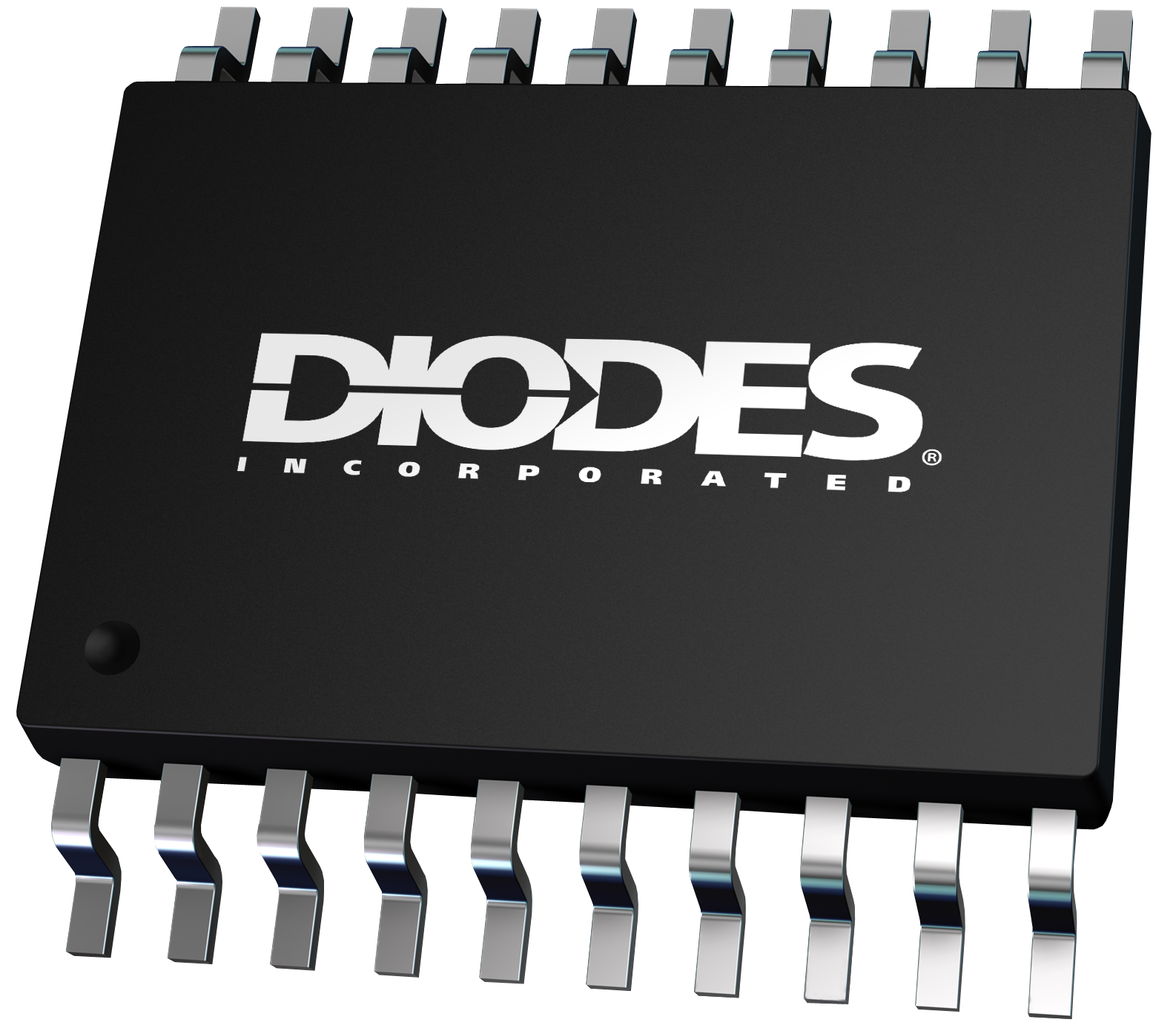

PI3B3245LE Obsolete TSSOP-20 LFGP 74 TUBE
PI3B3245LEX Active TSSOP-20 TPGP 3000 T&R

PI3B3245LEX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 1909 12/5/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
PI3B3245QE Active QSOP-20 GREEN 55 TUBE

PI3B3245QE

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 882 12/5/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
PI3B3245QEX Active QSOP-20 GREEN 2500 T&R

PI3B3245QEX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 886 12/5/2022 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample

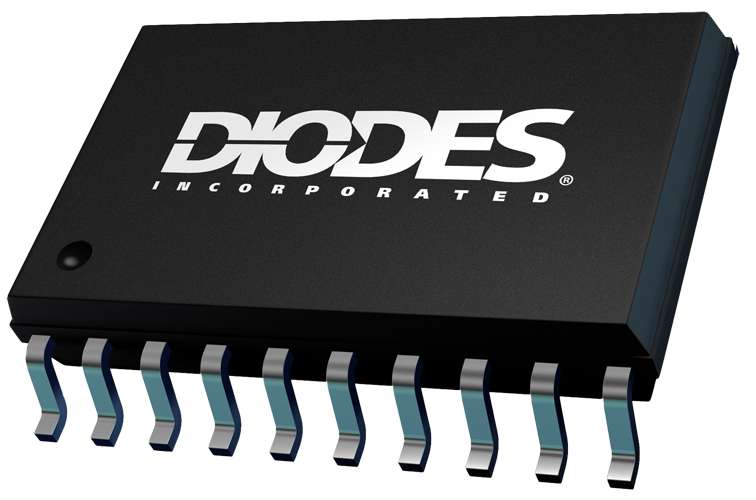

PI3B3245SE Obsolete SO-20 TPGP 35 TUBE
PI3B3245SEX Obsolete SO-20 TPGP 1000 T&R

Environmental Compliance Legend:
LFF: Pb-Free Finish and RoHS 5/6
TLFP: Totally Pb-Free Product and RoHS 6/6
LFGP: Pb-free Finish and Green Product, RoHS 5/6 and Halogen Free
TPGP: Totally Pb-Free and Green Product, RoHS 6/6 and Halogen Free
GREEN: Halogen-free and RoHS compliant
RoHS: RoHS compliant but NOT halogen-free

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2481 2020-08-26 2021-02-26 Device End of Life (EOL)
PCN-2428 2019-11-12 2020-02-12 Assembly & Test Site Porting from OSE to Greatek
