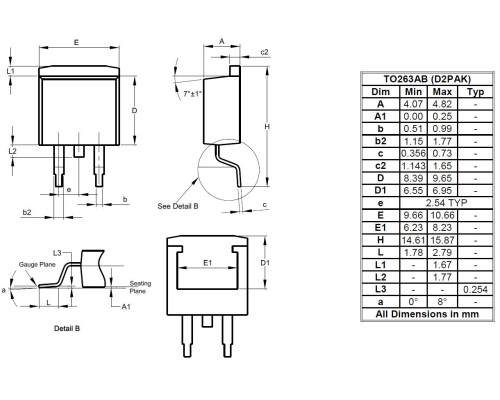

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

PAM3110 (Not Recommended for new design)

NRND = Not Recommended for New Design

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The PAM3110 is a 1.5A CMOS LDO regulator that features a low quiescent current and low dropout voltages, as well as over temperature shutdown. The fixed output voltage of the PAM3110 is set at the factory and trimmed to ±1.5%. The PAM3110 is stable with a ceramic output capacitor of 4.7µF or higher. This family of regulators can provide either a stand-alone power supply solution or act as a post regulator for switch mode power supplies. They are particularly suitable for applications requiring low input and output voltages. PAM3110 is available in SOT-223, TO-252 and TO-263-2L package.


· Minimum Guaranteed Output Current: 1.5A · Low Dropout Voltage: 375mV at IOUT=1.5A · Output Accuracy: ±1% · Low Ground Current · Internal Current and Thermal Limit · Reversed-battery and Reversed-lead Insertion Protection · Fast Transient Response · TTL/CMOS Compatible Enable Pin


  • DSP, FPGA and Microprocessor Power Supplies
  • SATA Power Supply
  • LCD TV/Monitors
  • Wireless Devices
  • Communication Devices
  • Portable Electronics
  • Post Regulator for SMS

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
Dropout Voltage Max (V) 0.4
Enable Active N/A
OperatingInputVoltage Max (V) 5.5
OperatingInputVoltage Min (V) 2.5
Operating Temperature (ºC) -40 to 85
Operating Temperature -40 to 125
Output Current (mA) 1.5
Output Voltage (V) 5, 3.3, 2.5, 1.8, 1.5, 1.2
AEC Qualified No
Quiescent Current Typ (mA) 75

Technical Documents

Recommended Soldering Techniques


Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
