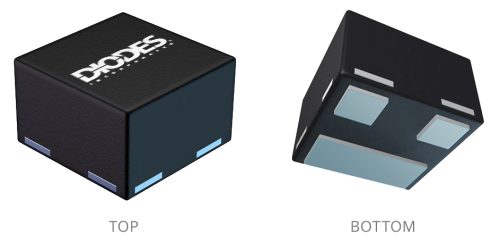

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. X2-DFN0606-3
Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. X2-DFN0606-3
Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. X2-DFN0606-3
PNP, 40V, 0.2A, DFN0606-3
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
Compliance (Only Automotive Supports PPAP) |
Standard |
|---|---|
Category |
Small Signal Transistor |
Polarity |
PNP |
VCEO, VCES (V) |
40 |
IC (A) |
0.2 |
ICM (A) |
0.5 |
PD (W) |
0.27 |
hFE (Min) |
100 |
hFE (@ IC) (A) |
0.01 |
hFE(Min 2) |
30 |
hFE (@ IC2) (A) |
0.1 |
VCE(sat) Max (mV) |
250 |
VCE(SAT) (@ IC/IB) (A/mA) |
0.01/1 |
VCE(sat) (Max.2) (mV) |
400 |
VCE(sat) (@ IC/IB2) (A/mA) |
0.05/5 |
fT (MHz) |
300 |
