LTTH3060PW

ULTRA-FAST RECOVERY RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • Rating to 600V PRV
  • High Reliability
  • Max Forward Voltage
  • Qualification is according to AEC-Q101 Rev_C
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified Yes
Product Type ULTRA-FAST RECOVERY RECTIFIER
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 30 A
Maximum Peak Forward Surge Current IFSM (A) 350 A
Peak RepetitiveReverse VoltageVRRM (V) 600 V
Forward VoltageDrop VF(V) 2.4 V
@ IF (A) 30 A
Maximum ReverseCurrent IR (µA) 10 µA
@ VR (V) 600 V
Reverse RecoveryTime trr (ns) 45 ns

Related Content

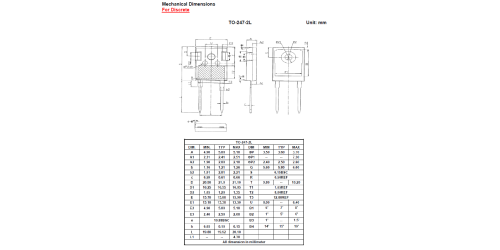

Packages
