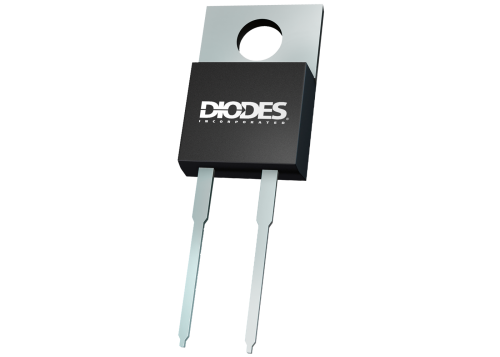

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. TO220AC (Type WX)

Back to Fast/Ultra-Fast Rectifiers

DTH8L06D

HYPER-FAST EPITAXIAL RECTIFIER

Contact Sales

Description

Suitable for rectification and freewheeling for SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment, and telecommunication applications.

Feature(s)

Soft, Hyper Fast Switching Capability
Glass Passivated Die Construction
Especially Suited for Discontinuous or Critical Conduction Mode Power Factor Corrections
High-Reliability and Efficiency
Low Forward Voltage Drop
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen- and Antimony-Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Specifications & Technical Documents

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive Supports PPAP)	Standard
Product Type	HYPER-FAST EPITAXIAL RECTIFIER
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	8 A
Maximum Peak Forward Surge Current I_{FSM (A)}	120 A
Peak RepetitiveReverse VoltageV_RRM(V)	600 V
Forward VoltageDrop V_F(V)	1.3 V
@ I_F(A)	8 A
Maximum ReverseCurrent I_R(µA)	8 µA
@ V_R(V)	600 V
Reverse RecoveryTime trr (ns)	70 ns

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

RoHSFile

Purchase & Availablity

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2599	2022-10-11	2023-01-11	Additional Wafer Source for Select Discrete Products
