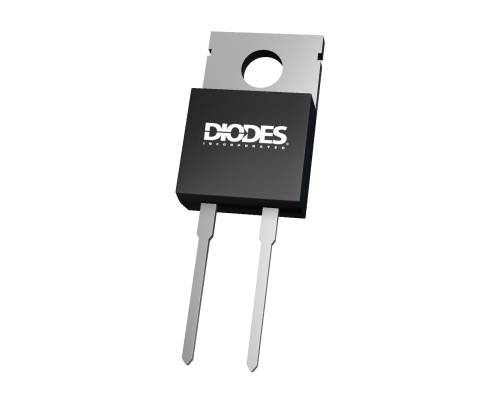

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. TO220AC

Back to Fast/Ultra-Fast Rectifiers

DTH810D

HYPER-FAST EPITAXIAL RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Suitable for rectification and freewheeling for SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment, and telecommunication applications.

Feature(s)

  • Soft, Hyper-Fast Switching Capability
  • Glass Passivated Die Construction
  • Specially Suited for Critical Mode Power Factor Correction
  • High Reliability and Efficiency
  • Low-Forward Voltage Drop
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • An automotive-compliant part is available under separate datasheet (DTH810DQ)

Application(s)

  • SMPS,
  • LED lighting
  • Adapters
  • Battery Chargers
  • Home Appliances
  • Office Equipment
  • Telecommunication

Specifications & Technical Documents

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive Supports PPAP) Standard
Product Type HYPER-FAST EPITAXIAL RECTIFIER
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 8 A
Maximum Peak Forward Surge Current IFSM (A) 80 A
Peak RepetitiveReverse VoltageVRRM (V) 1000 V
Forward VoltageDrop VF(V) 2 V
@ IF (A) 8 A
Maximum ReverseCurrent IR (µA) 5 µA
@ VR (V) 1000 V
Reverse RecoveryTime trr (ns) 85 ns
TotalCapacitance CT (pF) 40 pF
