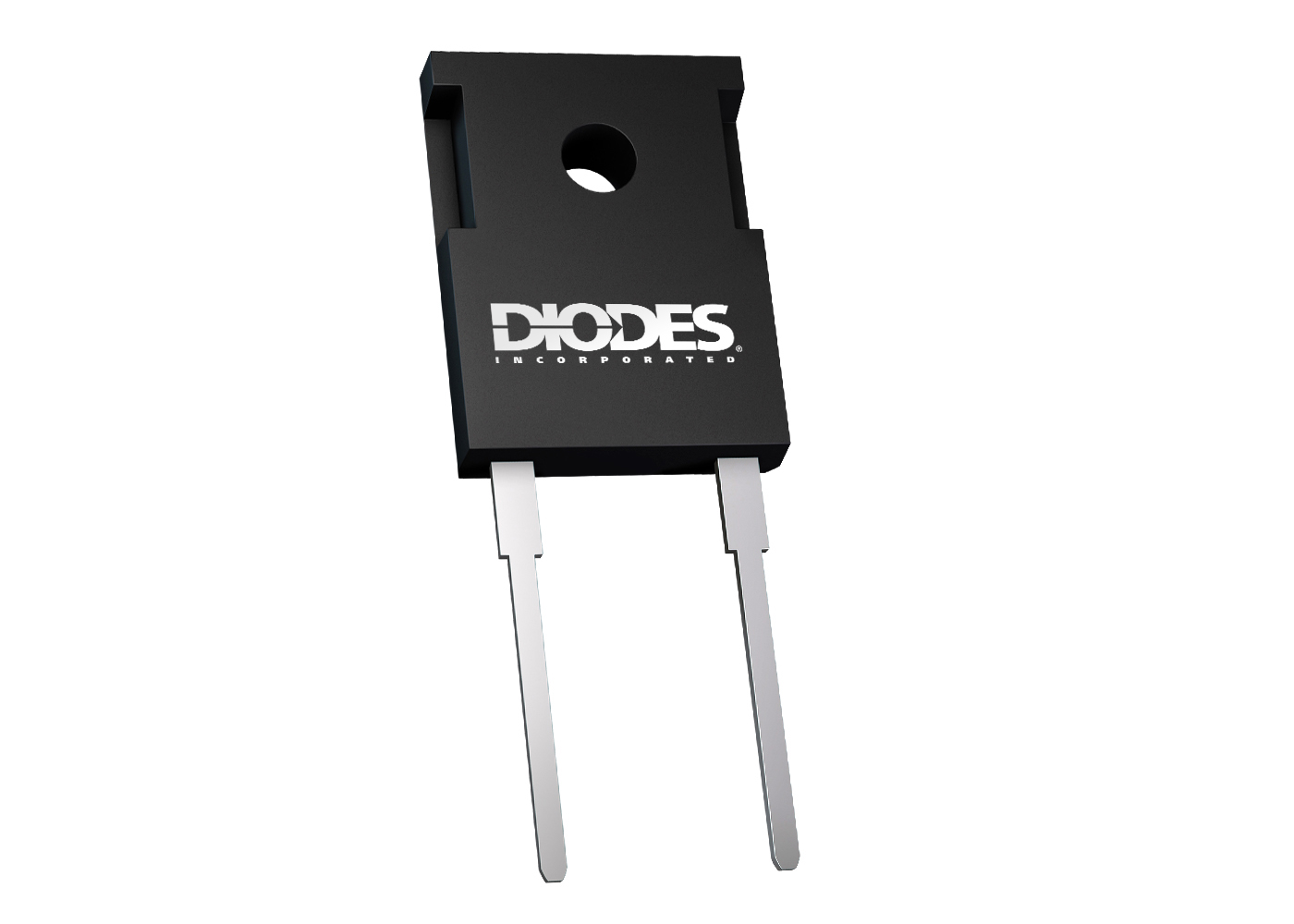

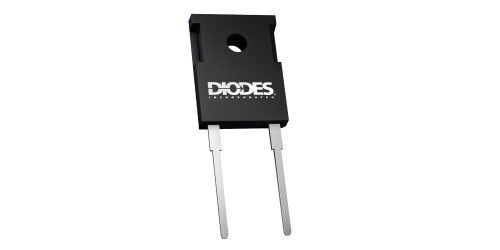

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

DTH6007PT (Not Recommended for new design)

NRND = Not Recommended for New Design

60A SUPER-FAST EPITAXIAL RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Suitable for switching power supplies and power switching circuit applications.

Feature(s)

  • Soft, Super-Fast Switching Capability
  • Glass Passivated Die Construction
  • Rating to 650V Peak Reverse Voltage
  • Low Reverse Current
  • Low Thermal Resistance
  • Reduces Conduction and Switching Losses
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

@ IF (A) 60
@ VR (V) 650
AEC Qualified Yes
Compliance (Only Automotive supports PPAP) Standard
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
Forward VoltageDrop VF(V) 2.4
MaximumAverageRectifiedCurrent IO (A) 60
Maximum Peak Forward Surge Current IFSM (A) 400
Maximum ReverseCurrent IR (µA) 100
Peak RepetitiveReverse VoltageVRRM (V) 650
Compliance (Only Automotive supports PPAP) Standard
Product Type SUPER-FAST EPITAXIAL RECTIFIER
AEC Qualified Yes
Reverse RecoveryTime trr (ns) 60
