DST3904DJ

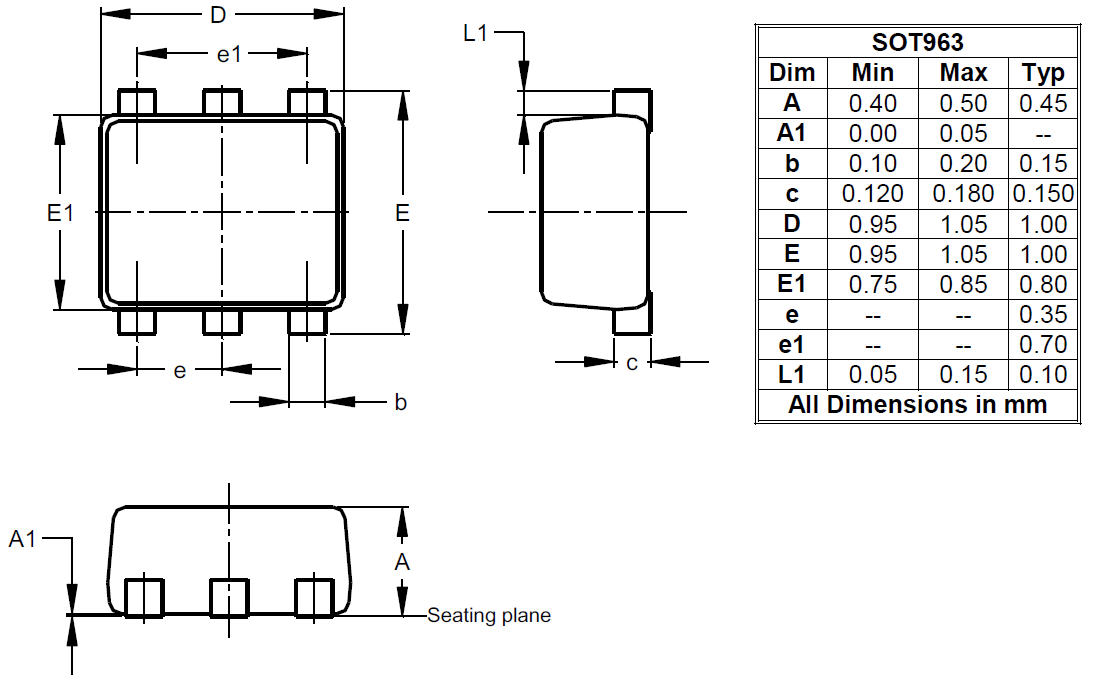

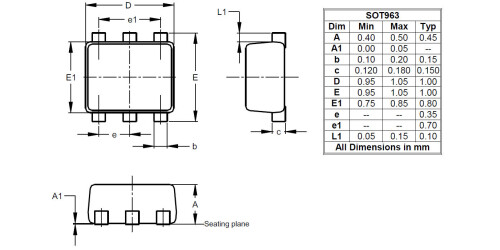

Dual NPN, 40V, 0.2A, SOT963

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Specifications & Technical Documents

Product Parameters

RCE(sat) (mΩ)

-

Compliance (Only Automotive Supports PPAP)

Standard

Category

Small Signal Transistor

Polarity

NPN + NPN

VCEO, VCES (V)

40

IC (A)

0.2

ICM (A)

-

PD (W)

0.3

hFE (Min)

100

hFE (@ IC) (A)

0.01

hFE(Min 2)

30

hFE (@ IC2) (A)

0.1

VCE(sat) Max (mV)

200

VCE(SAT) (@ IC/IB) (A/mA)

0.01/1

VCE(sat) (Max.2) (mV)

300

VCE(sat) (@ IC/IB2) (A/mA)

0.05/5

fT (MHz)

300

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2582 2022-05-17 2022-08-17 Qualified Additional Bill of Material (BOM) – Lead Frame Raw Material (C19400 XSH)
