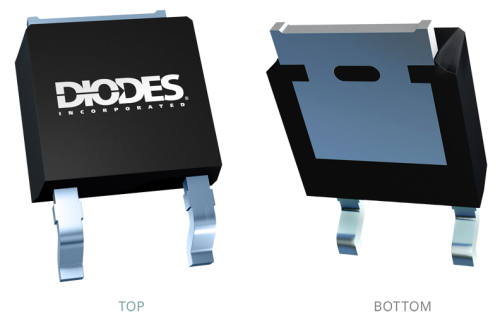

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to SiC Diodes

DSC10120D1

10A Silicon Carbide Schottky Diode

Contact Sales

Description

Packaged in the robust industry-standard TO252-2 (Type WX) package, the DIODES™ DSC10120D1 provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode.

Feature(s)

Low Conduction and Switching Loss
High Temperature Application
Positive Temperature Coefficient on V_F
Fast Reverse Recovery
High Surge Current Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Power factor correction
Industrial motor drivers
Power inverters
SMPS
UPS

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive supports PPAP)	Standard
Product Type	SiC Diodes
Configuration	Single
Maximum Average Rectified Current IO (A)	10
Maximum Peak Forward Surge Current I_{FSM (A)}	120
Peak Repetitive Reverse Voltage VRRM (V)	1200
Forward VoltageDrop V_F(V)	1.7
@ IF (A)	10
Maximum Reverse Current IR (μA)	640
@ VR (V)	1200
Total Capacitive Charge (nC)	32 Qc
Total Capacitance CT (pF)	500
