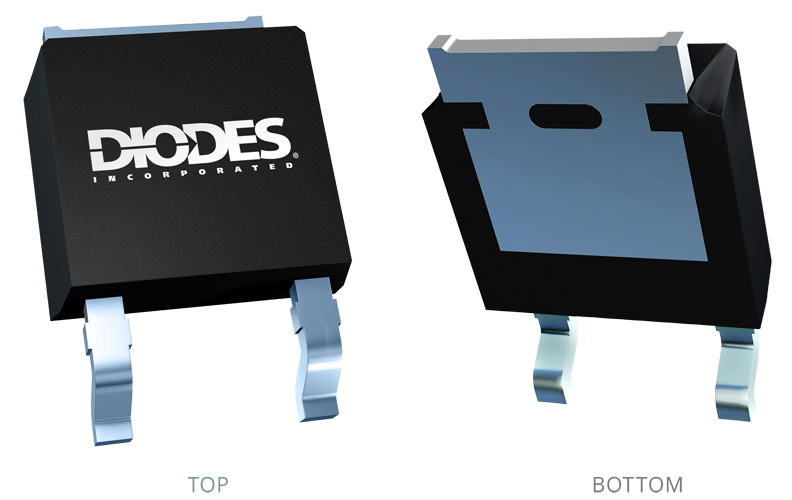

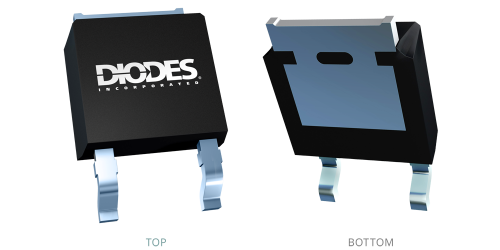

TO252 2 Type WX

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to SiC Diodes


2A Silicon Carbide Schottky Diode

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


Packaged in the robust industry-standard TO252-2 (Type WX) package, the DSC02120D1 provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode: power factor correction, industrial motor drivers, power inverters, SMPS, UPS.


  • Low Conduction and Switching Loss
  • High Temperature Application
  • Positive Temperature Coefficient on VF
  • Fast Reverse Recovery
  • High Surge Current Capability
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/


  • Power factor correction
  • Industrial motor drivers
  • Power inverters
  • SMPS
  • UPS

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive supports PPAP) Standard
Product Type SiC Diodes
Configuration Single
Maximum Average Rectified Current IO (A) 2
Maximum Peak Forward Surge Current IFSM (A) 24
Peak Repetitive Reverse Voltage VRRM (V) 1200
Forward VoltageDrop VF(V) 1.7
@ IF (A) 2
Maximum Reverse Current IR (μA) 128
@ VR (V) 1200
Total Capacitive Charge (nC) 15 Qc
Total Capacitance CT (pF) 105
