DPC6137

High Speed Photocoupler

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • High Speed 10Mbps typical
  • High Input-Output Isolation Voltage (VISO = 5,000VRMS)
  • LSTTL/ TTL and 5V CMOS Compatible
  • Safety Approval

UL1577 (No.E536221)

CQC 4943.1-2022 (No.CQC24001432528)

VDE EN IEC 60747-5-5 (No.40058801)

  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP) Standard
AEC Qualified No
CTR Max (%) N/A %
CTR Min (%) N/A %
VF (V) 1.6 V
Vcc (V) 5 V
tPHL Max. (μs) 0.075 μs
Topr (max) (°C) 85 °C
Topr (min) (°C) -40 °C
Viso (Vrms) 5000 Vrms

Related Content

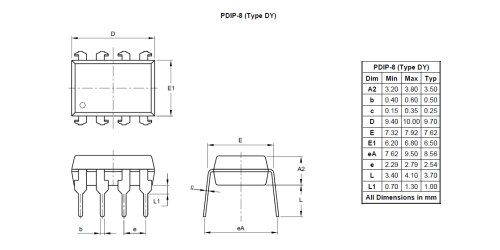

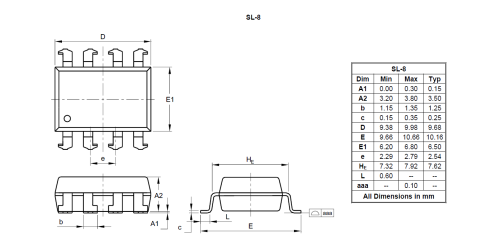

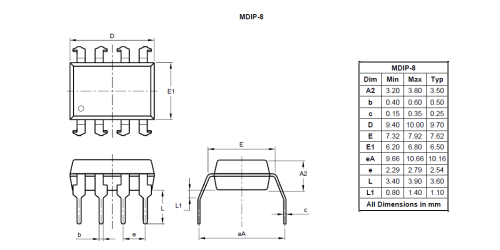

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf
