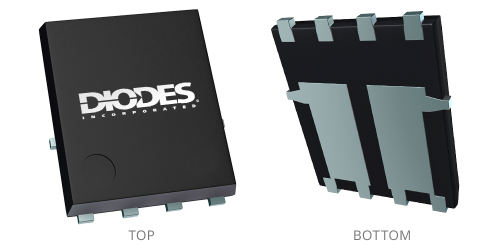

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to MOSFET Master Table

DMTH6010LPDQ

60V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: engine management systems, body control electronics, and DC-DC converters.

Feature(s)

  • Rated to +175°C – Ideal for High Ambient Temperature Environments
  • 100% Unclamped Inductive Switching (UIS) Test in Production – Ensures More Reliable and Robust End Application
  • High Conversion Efficiency
  • Low Input Capacitance
  • Fast Switching Speed
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • The DMTH6010LPDQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Engine management systems
  • Body control electronics
  • DC-DC converters

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive(Q) supports PPAP) Automotive
Polarity N+N
ESD Diodes (Y|N) No
|VDS| (V) 60 V
|VGS| (±V) 20 ±V
|IDS| @TA = +25°C (A) 13.1
|IDS| @TC = +25°C (A) 47.6
PD @TA = +25°C (W) 2.8
PD @TC = +25°C (W) 37.5
RDS(ON)Max@ VGS(10V)(mΩ) 11 mΩ
RDS(ON)Max@ VGS(4.5V)(mΩ) 16 mΩ
|VGS(TH)| Max (V) 3 V
QG Typ @ |VGS| = 4.5V (nC) 20.3 nC
QG Typ @ |VGS| = 10V (nC) 40.2 nC
CISS Typ (pF) 2615 pF
CISS Condition @|VDS| (V) 30 V

Technical Documents

SPICE Model

Application Notes

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2485 2020-12-04 2021-03-04 Qualification of Internal "Diodes Technology (Cheng Du) Company Limited" (CAT) as Additional Assembly & Test Site Using PdCu or Au Bond Wire, And Qualification of Additional Wafer Source for Select Discrete Automotive Products
