DMP2541UCP9

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • Low Qg & Qgd

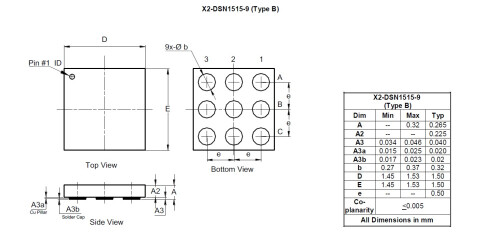

  • Small Footprint 1.5mm × 1.5mm
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Application(s)

  • Battery management
  • Load switches
  • Battery protections

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 25 V
|VGS| (±V) 6 ±V
|IDS| @TA = +25°C (A) 5.2 A
PD @TA = +25°C (W) 1.67 W
RDS(ON)Max@ VGS(4.5V)(mΩ) 40 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 50 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 60 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.1 V
QG Typ @ |VGS| = 4.5V (nC) 4.7 nC
CISS Typ (pF) 566 pF
CISS Condition @|VDS| (V) 10 V
