DMP2037UFCL

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Feature(s)

  • Low On-Resistance
  • Low Input Capacitance
  • Fast Switching Speed
  • Low Input/Output Leakage
  • ESD Protected Gate
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Application(s)

  • Load switches

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 20 V
|VGS| (±V) 10 ±V
|IDS| @TA = +25°C (A) 8 A
PD @TA = +25°C (W) 2.3 W
RDS(ON)Max@ VGS(4.5V)(mΩ) 28 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 43 mΩ
|VGS(TH)| Min (V) 0.5 V
|VGS(TH)| Max (V) 1.5 V
QG Typ @ |VGS| = 4.5V (nC) 8.5 nC
CISS Typ (pF) 806 pF
CISS Condition @|VDS| (V) 10 V

Related Content

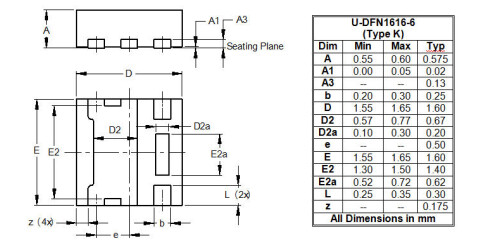

Packages
