DMP1011UCB9

P-Channel Enhancement Mode MOSFET

Datasheet

Contact Sales

Description

This 3rd generation Lateral MOSFET (LD-MOS) is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power transfer. It uses Chip-Scale Package (CSP) to increase power density by combining low thermal impedance with minimal RDS(on) per footprint area.

Feature(s)

LD-MOS Technology with the Lowest Figure of Merit: RDS(on) = 8.2mΩ to Minimize On-State Losses Qg = 8.1nC for Ultra-Fast Switching
Vgs(th) = -0.8V typ. for a Low Turn-On Potential

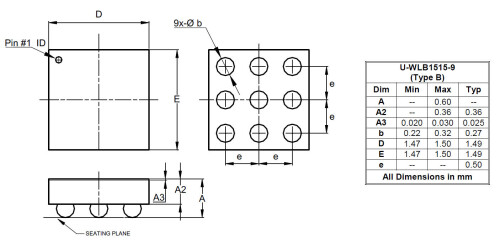

CSP with Footprint 1.5mm × 1.5mm
Height = 0.60mm for Low Profile
ESD = 6kV HBM Protection of Gate

Application(s)

DC-DC Converters
Battery Management
Load Switch

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	Yes
Polarity	P
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	8 V
\|V_GS\| (±V)	6 ±V
\|I_DS\| @T_A = +25°C (A)	7.4 A
P_D @T_A = +25°C (W)	1.57 W
R_DS(ON)Max@ V_GS(4.5V) (mΩ)	10 mΩ
R_DS(ON)Max@ V_GS(2.5V) (mΩ)	14 mΩ
\|V_GS(TH)\| Min (V)	0.4 V
\|V_GS(TH)\| Max (V)	1.1 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	8.1 nC
C_ISS Typ (pF)	817 pF
C_ISS Condition @\|V_DS\| (V)	4 V

Technical Documents

SPICE Model

DMP1011UCB9.spice.txt

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
