DMN38M1SCA10

N-Channel Enhancement Mode Field MOSFET

Datasheet

Contact Sales

Description

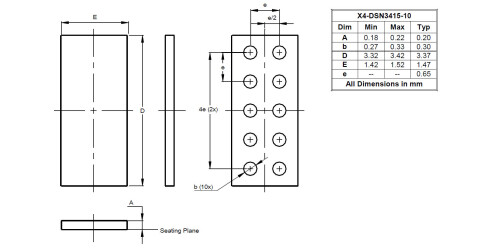

This new generation MOSFET has been designed to minimize the on-state resistance (R_SS(ON)) with a 3.37mm x 1.47mm x 0.2mm size yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Feature(s)

Built-in G-S Protection Diode Against ESD 1kV HBM
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Battery management
Load switches
Battery protections

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	No
Polarity	N
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	30 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_A = +25°C (A)	16 A
P_D @T_A = +25°C (W)	3 W
R_DS(ON)Max@ V_GS(10V) (mΩ)	7.8 mΩ
R_DS(ON)Max@ V_GS(4.5V) (mΩ)	11 mΩ
\|V_GS(TH)\| Min (V)	1.3 V
\|V_GS(TH)\| Max (V)	2.3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	16.9 nC
Q_G Typ @ \|V_GS\| = 10V (nC)	36.7 nC
C_ISS Typ (pF)	1914 pF
C_ISS Condition @\|V_DS\| (V)	15 V

Technical Documents

SPICE Model

DMN38M1SCA10.spice.txt

Recommended Soldering Techniques

TN1.pdf
