Description

The DML3020UDC is a protection switch intended for applications that require reverse-current protection. The input operating voltage range is from 3.4V to 22V, and both VIN and VOUT terminals are rated at 28V absolute maximum. The power switch is capable for 15A surge current for 10ms. The DML3020UDC provides undervoltage lockout, overvoltage and overtemperature protection. The FLTB pin flags thermal shutdown, overvoltage and reverse-current faults.
An internal soft-start circuit controls inrush current due to highly capacitive loads and the slew rate can be adjusted using an external capacitor. The integrated back-to-back MOSFET offers industry’s lowest ON-resistance and highest SOA to safely handle high current and wide range of output capacitances on VOUT.

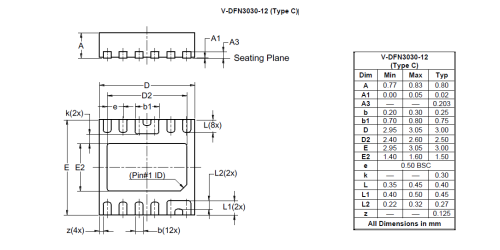

The DML3020UDC is housed in the low-profile and space-saving VDFN3030-12 (Type C) package which is manufactured with environmental-friendly material.

Feature(s)

Wide Operating Voltage Range: 3.4V to 22V
5.5A Continuous Sink Current
36mΩ Typical ON-Resistance
Adjustable DV/DT Control at Startup
VIN Undervoltage Lockout (UVLO)
VIN Overvoltage Lockout (OVLO)
Thermal Shutdown Protection (OTP)
Ideal Diode True Reverse-Current Blocking (IDTRCB)
Reverse-Current Protect (RCP)
Short Circuit Protection During Startup (SCP)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Thunderbolt/USB Type-C® PD power switches
Notebooks & desktops & AIO PCs, servers, and tablets
Docking stations, universal & multimedia hubs
Power banks and power ORing applications

Specifications & Technical Documents

Product Parameters

Type	LOAD SWITCH
AEC Qualified	No
Compliance (Only Automotive Supports PPAP)	Standard
Quiescent Current Typ (μA)	500
Operating Ambient Temperature (°C)	-40 to 85
Maximum Continuous Output Current (A)	15
(MAX) Maximum Current Limit Fixed (A)	Not limited
Adjustable Current Limit	No
Channels	1
Enable Logic	Active High
Minimum Operating Voltage (V)	0
Maximum Operating Voltage (V)	28
RDS(ON) (VIN = 5V) Typ (mΩ)	36
Reverse Current Block	No
Minimum Power Supply Voltage (V)	3.4
Maximum Power Supply Voltage (V)	22
Output Discharge	Yes
(TYP) Output Rise Time mS	Adjustable
OCP Output Latch Off	Yes
OCP/SCP	OCP/SCP
OCP Flag	Yes
Power Good	Open Drain
Overtemperature Protection	Yes
UL Certificate	No

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
