DMJ70H1D3SJ3 (Obsolete)

N-CHANNEL ENHANCEMENT MODE HV MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • 100% Unclamped Inductive Switch (UIS) Test in Production
  • Fast Switching Speed
  • Low On-Resistance

Application(s)

  • AC-DC Converters
  • SMPS

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
CISS Condition @|VDS| (V) 50
CISS Typ (pF) 351
ESD Diodes (Y|N) No
|IDS| @TA = +25°C (A) 4.6
|IDS| @TC = +25°C (A) N/A
PD @TA = +25°C (W) 1.58
PD @TC = +25°C (W) N/A
Polarity N
QG Typ @ |VGS| = 10V (nC) 13.9
QG Typ @ |VGS| = 4.5V (nC) N/A
AEC Qualified No
RDS(ON)Max@ VGS(1.8V)(mΩ) N/A
RDS(ON)Max@ VGS(10V)(mΩ) 1300
RDS(ON)Max@ VGS(2.5V)(mΩ) N/A
RDS(ON)Max@ VGS(4.5V)(mΩ) N/A
|VDS| (V) 700
|VGS| (±V) 30
|VGS(TH)| Max (V) 4

Related Content

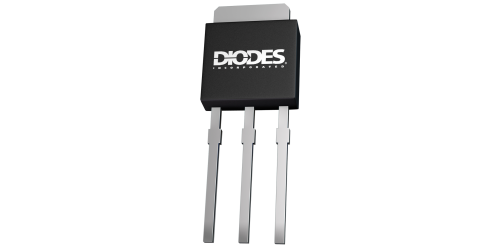

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2475 2020-08-06 2020-11-06 Qualification of Assembly & Test Site Transfer for Select Discrete Products
