Diodes Incorporated

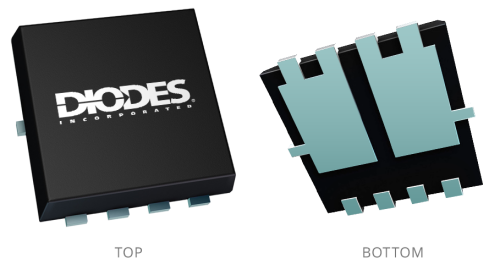

PowerDI3333 8 Type UXC

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to MOSFET Master Table

DMC3016LDV

COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • Low On-Resistance
  • Low Input Capacitance
  • Fast Switching Speed
  • Low Input/Output Leakage
  • Complementary Pair MOSFET

Application(s)

  • Power Management Functions
  • Analog Switch

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+P
ESD Diodes (Y|N) No
|VDS| (V) 30, 30 V
|VGS| (±V) 20, 20 ±V
|IDS| @TA = +25°C (A) 21, 15 A
PD @TA = +25°C (W) 1.8 W
RDS(ON)Max@ VGS(10V)(mΩ) 12, 25 mΩ
RDS(ON)Max@ VGS(4.5V)(mΩ) 17, 38 mΩ
|VGS(TH)| Max (V) 2, 2.4 V
QG Typ @ |VGS| = 4.5V (nC) 9.5, 9.5 nC
QG Typ @ |VGS| = 10V (nC) 21, 19.7 nC
CISS Typ (pF) 1184, 1188 pF
CISS Condition @|VDS| (V) 15, 15 V

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2425 2019-10-04 2020-01-04 Qualification of Additional Wafer Solderable Front Metal Plating, Back Grinding and Back Metal Process Source, and
Additional Wafer Source for Select Products.
