D40V0S1U2LP1608Q

One Channel High Surge TVS Diode

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The D40V0S1U2LP1608Q offers electrostatic discharge (ESD) protection and surge protection and is packaged in a small footprint surface-mount package. This device is designed for Ethernet protection for two automotive in-vehicle network bus lines from the damage caused by ESD and other transients.

Feature(s)

  • Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
  • One Channel of ESD Protection
  • Low Channel Input Capacitance
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • The D40V0S1U2LP1608Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Low-voltage differential signalling (LVDS) automotives
  • Automotive in-vehicle information display protection

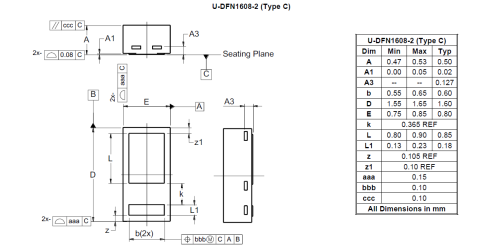

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP) Automotive
AEC Qualified Yes
Configuration Single (Unidirectional)
Channel Input CapacitanceCT Typ (pF) 138 pF
Reverse Standoff Voltage VRWM(V) 40 V
Breakdown VoltageVBR Min(V) 45 V
Maximum Clamping Voltage @ Max Peak Pulse Current VC (V) 75 V
VESD IEC61000-4-2 Contact Discharge(kV) ±30 kV

Technical Documents

Recommended Soldering Techniques

TN1.pdf
