AZ317 (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

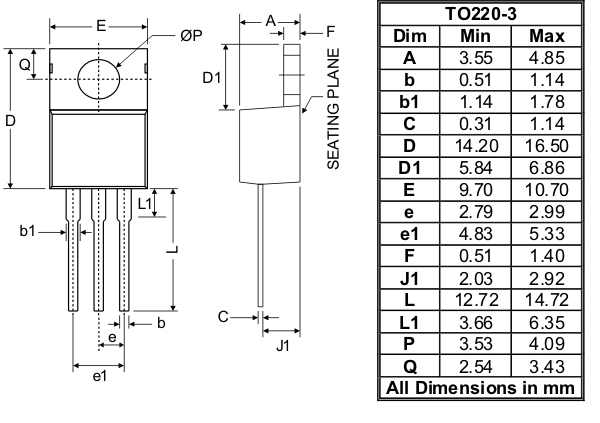

The AZ317 is an adjustable three-terminal positive voltage regulator with a very low dropout of 1.2V at 1A output current. Using 2 external resistors, the AZ317 can provide an adjustable output voltage down to 1.25V. The AZ317 includes a circuit of trimmed bandgap reference to assure output voltage accuracy to be within 1%. It also provides current limiting and thermal shutdown. The current limit is trimmed to ensure specified output current and control°C short-circuit current. The On-chip thermal limiting provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The AZ317 is available in the standard SOT-223, TO- 220-3, TO-252-2 (1), TO-252-2 (3) and TO-263-3 power packages.

Application(s)

  • PC Motherboard
  • LCD Monitor
  • Graphic Card
  • DVD Player
  • Network Interface Card/Switch
  • Telecom Equipment
  • Printer and other Peripheral Equipment

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) -
Dropout Voltage Typical (V) 1.2
Operating Ambient Temperature Range (Junction Temperature) (°C) 0 to 125
Operating Input Voltage (V) 15
Output Current (mA) 1
Output Voltage (V) ADJ(1.25)
PSRR Typ @ 120hz (dB) 75
AEC Qualified -
Quiescent Current Typ (mA) 10

Related Content

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf
