Description

The AP22916 is a small, low leakage, single P-channel power MOSFET designed for low-power consumption and load-switching applications. This power MOSFET has a typical R_DS(ON)of 60mΩ at 5V, allowing increased load current handling capacity with a low forward voltage drop. Multiple voltages correspond to different time options to support various system load conditions. The trigger of the load switch ON pin can be controlled to be enabled or disabled by an external low voltage digital signal for sequence control application. The smart, pull down feature is built into the ON pin. Once the enable voltage is higher than V_IH, it will disconnect to avoid power loss. V_IN and V_OUT are isolated during OFF state with the TRCB (true reverse current blocking) feature.

The AP22916 load switch is designed to operate from 1.3V to 5.5V, making it ideal for 1.3V, 1.8V, 2.5V, 3.6V, and 5V systems. The typical quiescent supply current is only 0.5µA.

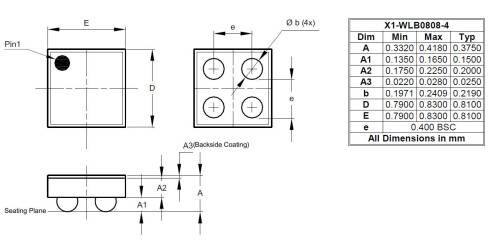

The AP22916 is available in the wafer-level chip-scale 4-pin, U-WLB0808-4 (Type B) 0.78mm x 0.78mm x 0.455mm, 0.4mm pitch package. The device is characterized for operation over a temperature range of -40°C to +85°C.

Feature(s)

Wide Input Voltage Range: 1.3V to 5.5V
Low On-Resistance
- 280mΩ Typical @1.3V
- 135mΩ Typical @1.8V
- 65mΩ Typical @3.6V
- 54mΩ Typical @5.0V
Continuous Current Capability up to 2A
True Reverse Current Blocking (TRCB)
Discharging Resistor on V_OUT When Disabled
Ultra-Low Quiescent Current 0.5µA
Active-High Control Pin
- Minimum 1.0V V_IH of ON
ESD Protection:
- Human Body Model: 2kV
- Charged Device Model: 1kV
Package:
- U-WLB0808-4 (Type B) with Backside Laminate
- 78mm x 0.78mm, 0.4mm Ball Pitch
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Mobile devices and smart phones
Portable media devices
Wearable devices
Advanced notebooks, UMPC, and MID
Portable medical devices
GPS and navigation equipment

Specifications & Technical Documents

Product Parameters

Type	Load Switch
AEC Qualified	No
Compliance (Only Automotive Supports PPAP)	Standard
Quiescent Current Typ (μA)	0.3
Maximum Continuous Output Current (A)	2
(MAX) Maximum Current Limit Fixed (A)	Not Limited
Channels	1
Enable Logic	Active High
Minimum Operating Voltage (V)	1.3
Maximum Operating Voltage (V)	5.5
RDS(ON) (VIN = 5V) Typ (mΩ)	54
Reverse Current Block	Yes
Minimum Power Supply Voltage (V)	1.3
Maximum Power Supply Voltage (V)	5.5
Output Discharge	Yes
(TYP) Output Rise Time mS	0.05, 0.75
OCP Flag	No
Power Good	No
Overtemperature Protection	Yes
UL Certificate	No

Technical Documents

Recommended Soldering Techniques

TN1.pdf
