AP22850 (Obsolete)

10V Single Channel Programmable Load Switch

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

AP22850 is an integrated P-Channel load switch, which features an adjustable ramp-up and discharge rate that can be set via an external capacitor and a resistor, respectively. In addition, it incorporates a “power good” output to flag when the switch is fully enhanced. The PChannel switch has a typical RDS(ON) of 21mΩ, enabling a current handling capability of up to 8A.

AP22850 is designed to operate from 4.5V to 11V. The near-zero quiescent supply current makes it ideal for use in battery powered distribution systems where power consumption is a concern.

Even as a P-Channel load switch, AP22850 does not require an external gate pull-up resistor, and consequently, stays true to its headlining feature of near-zero quiescent current specification. It also features circuitry to suppress fast input transients (with EN low) from coupling to VOUT.

Feature(s)

  • Near-Zero Quiescent Current
  • No External Gate Pull-Up Resistor Required
  • Suppresses Fast Transients on VIN
  • 4.5V to 11V Input Voltage Range
  • Low Typical RDS(ON) of 21mΩ
  • Adjustable Start-Up and Discharge Rate

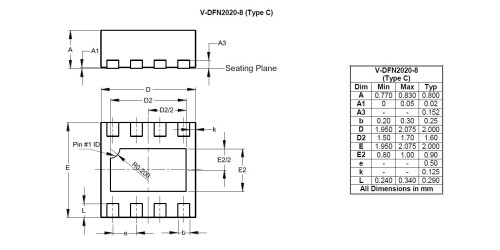

  • Small Form Factor Package W-DFN2020-8
    • Footprint of just 4mm2
  • Thermally Efficient Package with an Exposed Pad
  • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
  • Moisture Sensitivity: Level 1 per J-STD-020
  • Lead-Free Plating (NiPdAu Finish over Copper Leadframe). Terminals: Solderable per MIL-STD-202, Method 208
  • Weight: TBD grams (Approximate)
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Integrated Load Switches in Ultrabook PCs
  • Power Up/Down Sequencing in Ultrabook PCs
  • Tablets
  • Notebooks / Netbooks
  • E-Readers
  • Consumer Electronics
  • Set-Top Boxes
  • Industrial Systems
  • Telecom Systems

Specifications & Technical Documents

Product Parameters

(MAX) Maximum Current Limit Fixed (A) Not Limited
(TYP) Output Rise Time mS Adjustable
AEC Qualified No
Channels 1
Compliance (Only Automotive Supports PPAP) Standard
Enable Logic Active High
Maximum Continuous Output Current (A) 8
Maximum Operating Voltage (V) 11
Maximum Output Current 8
Maximum Power Supply Voltage (V) 11
Minimum Operating Voltage (V) 4.5
Minimum Power Supply Voltage (V) 4.5
OCP Flag No
Operating Ambient Temperature Range (°C) -40 to 85
Operating Voltage Range 4.5 to 11
Output Discharge Adjustable
Output Turn-On Delay Time Typ -
Output Turn-On Rise Time Typ -
Overtemperature Protection Yes
Power Good open drain
RDS(ON) 21
RDS(ON) (VIN = 5V) Typ (mΩ) 21
Reverse Current Block No
Type Load Switch
Typical Quiescent Current 0.001
UL Certificate No

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Purchase & Availablity

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2672 2024-03-11 2024-09-07 Device End of Life (EOL)
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
