Description

The AL5890 is a 400V linear constant current LED driver and it provides a cost-effective two pin solution. It has good temperature stability and the current accuracy of ±10% regulated over a wide voltage and temperature range. The AL5890 comes in various fixed output current options removing the need for external current setting resistors and creating a simple driver solution for the series of LEDs. The AL5890 supports both the high-side and low-side driving of LED chains.

The AL5890 turns on when the voltage between IN and OUT is greater than 7V. Long LED chain application up to 400V operating voltage subject to package thermal limitation.

The AL5890 is available in thermally robust PDI123 package.

Application

  • AC LED Lighting
  • Decorative LED Lighting
  • Display Signage Lighting

Features

  • DC 400V Operating Voltage with long LED chains subject to package thermal constraint
  • ±10% LED Current Tolerance Over Wide Temperature Range
  • Thermal Foldback Protection
  • 10mA, 15mA, 20mA, 30mA, and 40mA Constant Output Current Options
  • PDI123 Thermally Enhanced Package
  • Totally Lead-Free and Fully RoHS Compliant
  • Halogen and Antimony Free. Green Device

Product Specifications

Product Parameters

Qualified to AECQ10x No
Automotive Compliant PPAP No
Topology Linear LED Driver
Minimum Supply Voltage 7 V
Maximum Supply Voltage 400 V
Maximum VOUT 400 V
Number of Channels 1
LED Current Sense Voltage N/A mV
Output Current Fixed mA
LED Current 10 to 40 mA
Accuracy 10 %
Dimming Ext PWM
Temperature Range -40 to 125 °C

Related Content

Packages

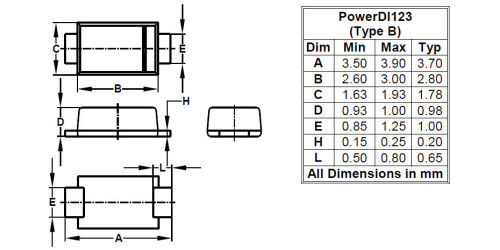

PowerDI123 (Type B)
