AH1897S

Micropower Omnipolar Hall Effect Switch

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AH1897S is a high sensitivity micropower Omnipolar Hall effect switch IC with an internal pull up and pull down capability. Designed for portable and battery powered equipment such as cellular phones and portable PCs, the average supply current is only 4.3μA at 1.85V. To support portable equipment, the AH1897S can operate over the supply range of 1.6V to 3.6V and uses a hibernating clocking system to minimize the power consumption. To minimize PCB space, the AH1897S is available in a small low profile X1-DFN1216-4 (Type B) package.

The output is activated with either a North or South pole of sufficient magnetic field strength. When the magnetic flux density (B) is perpendicular to the package is larger than operate point (Bop), the output will be turned on (pulled low). The output is turned off when B becomes lower than the release point (Brp). The output will remain off when there is no magnetic field.

Feature(s)

  • Omnipolar Operation (North or South Pole)
  • Supply Voltage of 1.6V to 3.6V
  • Micropower Operation
  • Chopper Stabilized Design Provides:
  • Superior Temperature Stability
  • Minimal Switch Point Drift
  • Enhanced Immunity to Physical Stress
  • No External Pull-Up Resistors Required
  • Good RF Noise Immunity
  • -40°C to +85°C Operating Temperature

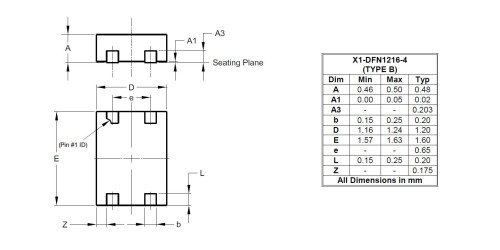

  • Small Low Profile X1-DFN1216-4 (Type B) Package
  • Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish NiPdAu over Copper Leadframe, Solderable per MIL-STD-202, Method 208
  • Weight: 0.002 grams (Approximate)
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Cover or Display Switch in Portable PCs
  • Open and Close Detect for Cellular Phones
  • Holster or Cover Detect for Cellular Phones and Tablet PCs
  • Digital Still, Video Cameras and Handheld Gaming Consoles
  • Contact-Less Switches

Product Specifications

Product Parameters

Compliance(Only Automotive supports PPAP) Standard
AEC Qualified No
Type Omnipolar
Outputs Single
Output Type Push-Pull
Active Output State (B > Bop) Low
Inactive Output State (B < Brp) High
Operating Voltage (V) 1.6 to 3.6
Average Supply Current (mA) 0.0043
Min Operating Point Bop (Bops +ve/ Bopn -ve) (Gauss) 14
Typ Operating Point Bop (Bops +ve/ Bopn -ve) (Gauss) 30
Max Operating Point Bop (Bops +ve/ Bopn -ve) (Gauss) 40
Min Release Point Brp (Brps +ve/ Brpn -ve) (Gauss) 10
Typ Release Point Brp (Brps +ve/ Brpn -ve) (Gauss) 20
Max Release Point Brp (Brps +ve/ Brpn -ve) (Gauss) 10
Operating Ambient Temperature (°C) -40 to 85

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
