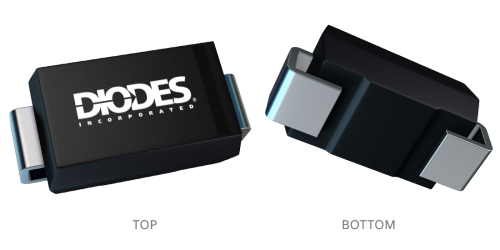

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
|Compliance (Only Automotive supports PPAP)||Standard|
|Power Rating (W)||3000 W|
|Reverse Standoff Voltage VRWM(V)||54 V|
|Breakdown VoltageVBR Min(V)||60 V|
|BreakdownVoltageVBR Max (V)||66.3 V|
|Maximum Reverse Leakage CurrentIR @ VRWM Max||5 µA|
|Maximum Clamping Voltage @ MaxPeak Pulse CurrentVC(V)||87.1 V|
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
|PCN #||Issue Date||Implementation Date||Subject|
|PCN-2588||2022-06-01||2022-09-01||Qualification of Additional Clip Bonding, Lead Frame Structure (Matrix) and Mold Compound, and Qualification of Additional
Diodes Internal Assembly & Test Site (SSEC) for Select Discrete Products
