1N4007G

standard rectifier

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

TotalCapacitance CT (pF) 8
AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Product Type 1A GLASS PASSIVATED RECTIFIER
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 1 A
Peak ForwardSurge CurrentIFSM(A) 30 A
Peak RepetitiveReverse VoltageVRRM (V) 1000 V
Forward VoltageDrop VF(V) 1 V
@ IF (A) 1 A
Maximum ReverseCurrent IR (µA) 5 µA
@ VR (V) 1000 V
Reverse RecoveryTime trr (ns) 2000 ns

Related Content

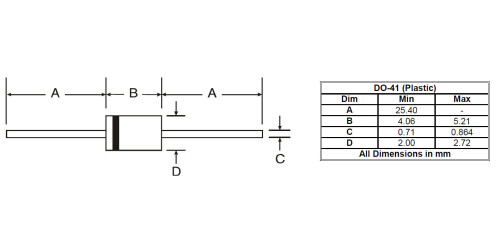

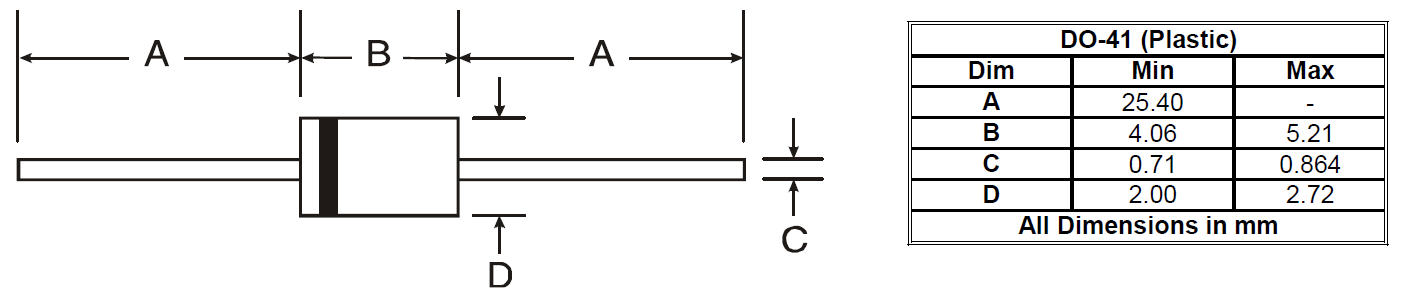

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2631 2023-11-07 2024-02-07 Transfer of Wafer Manufacturing Site for Select Discrete Products
