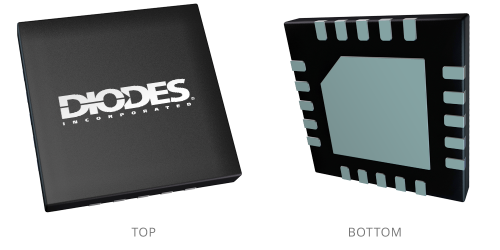

U QFN4040 20

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.


ZLPM8010 (Not Recommended for new design)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The ZLPM8010 is a power management and control solution for satellite set-top boxes (STBs). Based on an efficient boost converter the ZLPM8010 provides the power supply of up to 750mAand all the control signals required by a single port satellite Low Noise Block (LNB). The ZLPM8010 includes an accurate 22kHz tone generator to provide DiSEqC™ control words or continuous tone for band switching control. To provide a reliable DiSEqC™ 2.0 solution the IC includes a DiSEqC™ detector with unwanted signal rejection. Control°C by I2C™ or logic inputs and with the minimal external components the ZLPM8010 provides a high performing cost efficient solution.


  • Efficient boost converter providing an accurate adjustable power supplies LNBs
  • Operates from a single rail supply
  • Provides a protected output of up to 750mA
  • Adjustable current limit for system flexibility
  • Designed for stability with low power LNBs
  • Provides standard voltage / tone and DiSEqC™ control signals and allows for regional variations.
  • Internal 22kHz generator for DiSEqC™ control and traditional band switching
  • 22kHz maintains shape across all load conditions
  • Internal reliable tone detector for DiSEqC™ 2.0 systems
  • Control°C by I2C™ interface or independent logic control
  • Built in multiple diagnostics and protection for IC and LNB protection
  • Minimal external components for a simple, reliable and cost effective solution


  • Single / Dual Tuner Satellite Set-Top Boxes
  • Satellite PC Cards
  • TV’s with Integrated Satellite Tuners
  • Hybrid Set-Top Boxes

Product Specifications

Product Parameters

Iboost No
IC Controls (Enable) Yes
IC Controls (Logic) Yes
LNB Control (13/18V) Yes
LNB Control (22kHz / DiSEqC™ 1.x) Yes
LNB Control (DiSEqC™ 2) Yes
LNB Output (LNB Voltage Range) 10.25 to 19.5
LNB Output (Max LNB Current) 750
Protection (LNB Detect) Yes
Protection (Over Current) Adj
Protection (Over Temperature) 150ºC
