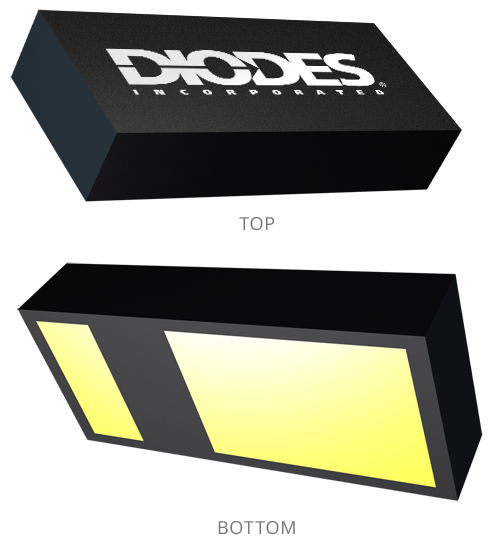

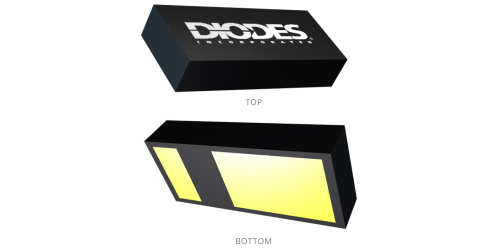

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Schottky (.5A and Above)


2A Trench Schottky Barrier Rectifier Chip-Scale Package

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The SDT2U30CP3 is a 30-volt 2A trench Schottky barrier rectifier that is optimized for low-forward voltage drop and low-leakage current, housed in a compact chip-scale package (CSP) that occupies only 0.84mm2 board space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space. The SDT2U30CP3 are ideally suited for use in portable applications as blocking diodes, boost diodes, switching diodes, and reverse protection diodes.


  • Low forward voltage (VF) minimizes conduction losses and improves efficiency
  • Reduced high temperature reverse leakage; Increased reliability against thermal runaway failure in high temperature operation
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/


  • Blocking diodes
  • Boost diodes
  • Switching diodes
  • Reverse protection diodes

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 2 A
Peak RepetitiveReverse VoltageVRRM (V) 30 V
Peak ForwardSurge CurrentIFSM(A) 20 A
Forward VoltageDrop VF(V) 0.48 V
@ IF (A) 2 A
Maximum ReverseCurrent IR (µA) 150 µA
@ VR (V) 30 V
TotalCapacitance CT (pF) 180 pF
