1.0A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
The SDM1L30CSP is a 30-volt 1A schottky barrier diode that is optimized
for low forward voltage and soft switching characteristics to meet the

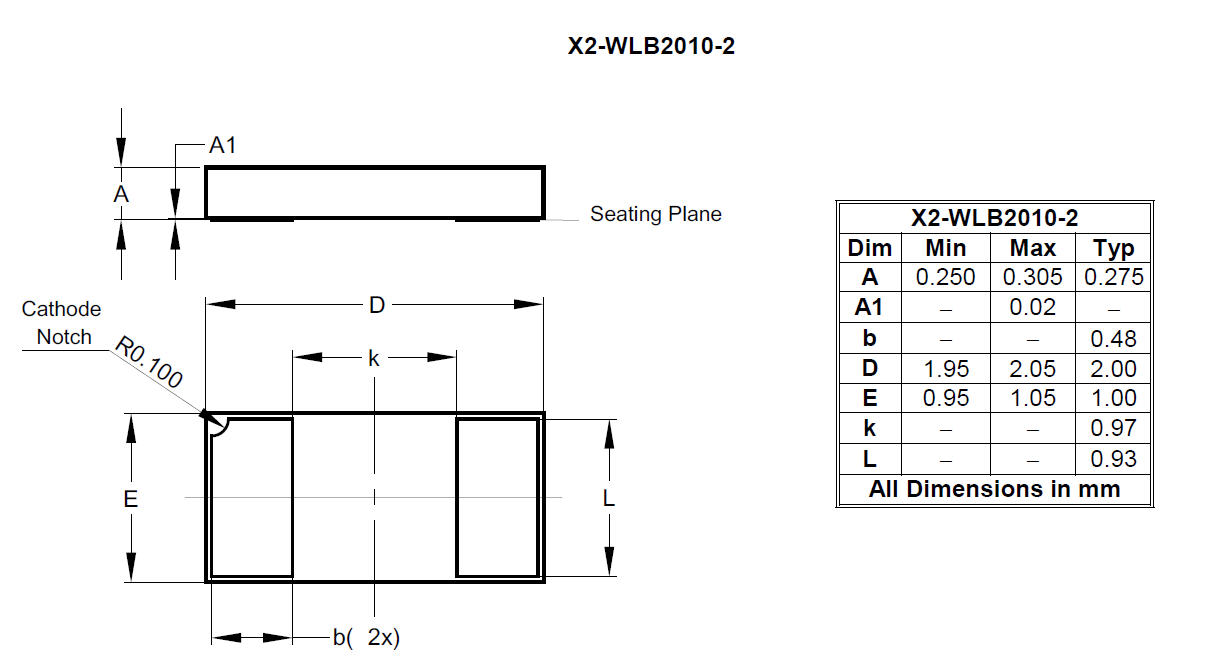

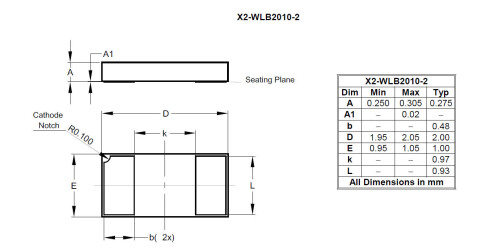

needs of wireless charging applications. It is housed in a compact chip
scale package (CSP) that occupies only 2mm2 board-space. It is ideally
suited for use in portable applications.
It is ideally suited for use in portable applications such as wireless charge.
Compliance (Only Automotive Supports PPAP) |
Standard |
|---|---|
AEC Qualified |
No |
Configuration |
Single |
MaximumAverageRectifiedCurrent IO (A) |
1 A |
Peak RepetitiveReverse VoltageVRRM (V) |
30 V |
Peak ForwardSurge CurrentIFSM(A) |
25 A |
Forward VoltageDrop VF(V) |
0.4 V |
@ IF (A) |
1 A |
Maximum ReverseCurrent IR (µA) |
1000 µA |
@ VR (V) |
30 V |
TotalCapacitance CT (pF) |
150 pF |
Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2770 | 2025-10-30 | 2025-10-30 | Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products |
| PCN-2560 | 2021-12-16 | 2021-12-16 | Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT) |
