PI4ULS5V108

8-Bit Bi-direction Level Shifter for Open-Drain and Push-Pull Application

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PI4ULS5V108 supports up to 100 MHz up translation and greater than 100 MHz down translation at ≤ 30pF cap load and up to 40 MHz up/down translation at 50pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). It has bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, or SMbus).

The PI4ULS5V108 supports 5 V tolerance on IO port which makes it compatible with TTL levels in industrial and telecom applications. It is able to set up different voltage translation levels on each channel which makes it very flexible.

Feature(s)

  • Provides Bidirectional Voltage Translation With No Direction Pin
  • Supports Up to 100 MHz Up Translation and Greater Than 100 MHz Down Translation at≤ 30pF Cap Load and Up To 40 MHz Up/Down Translation at 50 pF Cap Load
  • Supports Hot Insertion
  • Allow Bidirectional Voltage Level Translation Between
    • 0.95V ↔ 1.8/2.5/3.3/5V
    • 1.2V ↔ 1.8/2.5/3.3/5V
    • 1.8V ↔ 2.5/3.3/5V
    • 2.5V ↔ 3.3/5V
    • 3.3V ↔ 5V
  • Low Standby Current
  • Tolerance I/O Port to Support TTL

Application(s)

  • PC
  • Server
  • Networking
  • Automotive
  • Docking

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Translation From (V) 0.95 to 3.3
Translation To (V) 1.8 to 5
Max Signal Rate 100Mhz
Bits Needed 8
Auto Direction Sensing? Yes
Shift Bi-Directional
Prop Delay 2.2ns
Ambient or Junction Temperature (°C) -40 to 125

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Additional Technical Documents are available upon request:
Application information, Evaluation board, and Other technical documents

Request Documents
Orderable Part Number Status Package Environmental Compliance Packing Buy from Distributor /
Contact Sales
Request Samples
Qty. Carrier
PI4ULS5V108LEX Active TSSOP-20 LFGP 3000 T&R Contact Sales Request Sample

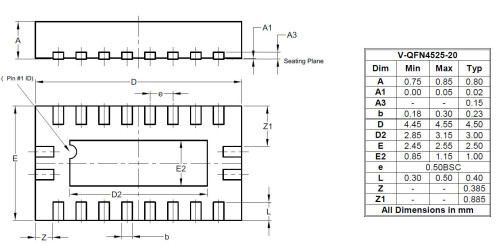

PI4ULS5V108ZBAEX Active V-QFN4525-20 TPGP 2500 T&R

PI4ULS5V108ZBAEX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow Electronics 1795 9/30/2022 United States Buy Now
Mouser Electronics Inc. 17289 9/30/2022 South America, North America, Asia, Europe, Middle East Buy Now
Digi-Key Electronics 86120 9/29/2022 Europe, Asia, North America Buy Now
Request Sample

Environmental Compliance Legend:
LFF: Pb-Free Finish and RoHS 5/6
TLFP: Totally Pb-Free Product and RoHS 6/6
LFGP: Pb-free Finish and Green Product, RoHS 5/6 and Halogen Free
TPGP: Totally Pb-Free and Green Product, RoHS 6/6 and Halogen Free
GREEN: Halogen-free and RoHS compliant
RoHS: RoHS compliant but NOT halogen-free
