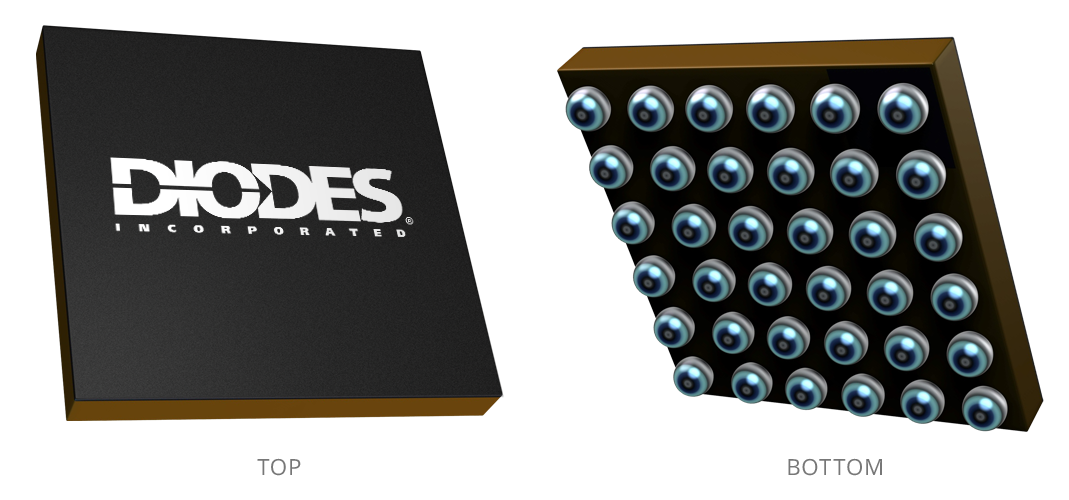

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. CSP (GH36) MSL1

Back to PI3WVR2646

PI3WVR2646 (Obsolete)

Alternative Part: PI3WVR648,

1.5V to 3.6V, D-PHY (2.5Gbps) 4-Data Lane and C-PHY (2.5Gsps) 3-Data Lane, 2:1 MIPI 4-Data Lane Switch

Contact Sales

Description

The PI3WVR2646 is a four-data-lane MIPI-D-PHY switch. This 10 channel single-pole, double-throw (SPDT) switch is optimized for switching between two high-speed (HS) or lowpower (LP) MIPI signal. The PI3WVR2646 is designed for the MIPI specification and allows connection to a CSI or DSI module.

Feature(s)

SPDT (10x) Switch Type and Signal Type Support D-PHY and C-PHY
Data Rate: D-PHY (2.5Gbps) 4-Data Lane and C-PHY (2.5Gsps) 3-Data Lane
Supports 2:1 clock differential signal
-3 dB Bandwidth: 4.1 GHz Typical
Low Crosstalk: -30 dB@1.25 GHz
Input Signals 0 to 1.3V
RON: 6Ω Typical LP & HS MIPI
∆RON: 0.1Ω Typical LP & HS MIPI
RON_FLAT: 0.3Ω Typical LP & HS MIPI
ICCZ: 0.5uA Typical
ICC: 32μA Max
CON: 1.5pF Typical
Skew of Opposite Transitions of the Same Output: 6ps Typical
VDD Operating Range: 1.5V to 3.6V
ESD Tolerance: 2kV HBM
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/
Packaging (Pb-free & Green):

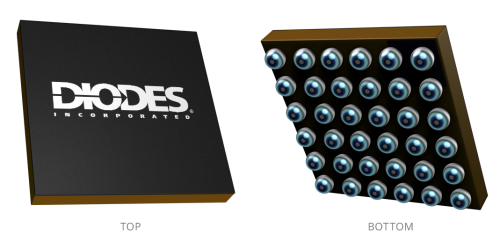

- 36-Ball, WLCSP (GH) 2.10x2.10

Application(s)

Cellular Phones, Smart Phone
Tablets
Laptops
Displays

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
Configuration	2:1 MIPI Switch, 4-Data Lane, 1 clock Lan
Differential Channels	5
Lanes	5
Type	SPDT

Technical Documents

Recommended Soldering Techniques

TN1.pdf
