Description

PI3USB9201 is a dual-role BC1.2-compliance charging-type detector. It can be programmed to operate in host mode or client
mode through I2C.


Particularly for USB-C application with bottom and top D+/- pins common at USB-C connector, when device attachment is detected by USB-C detector, which can program PI3USB9201 to perform BC1.2-compliance charging-type detections on D+/- connection.


When operating as a host, PI3USB9201 enables BC1.2 SDP/CDP/ DCP advertisement to the attached USB devices. When operating as a client, PI3USB9201 starts BC1.2 detection to detect the attached host type. In both host mode and client mode, the detection results are reported through I2C to the controller.


The PI3USB9201 can operate over a temperature range of -40 to +85° in a tiny 12- contact QFN 2mm x2mm package.

Application

  • Mobile Devices

Product Specifications

Product Parameters

Analog or Digital? Analog
Configuration One port
Differential Channels N/A
HotInsertion N/A
Lanes N/A
OtherFeatures Controller, Charging and Data Transfer
RailToRail No
Signal Type N/A
Single Ended Channels N/A
Type N/A
Voltage 5

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Additional Technical Documents are available upon request:
Application information, Evaluation board, and Other technical documents

Request Documents
Orderable Part Number Status Package Environmental Compliance Packing Buy from Distributor /
Contact Sales
Request Samples
Qty. Carrier

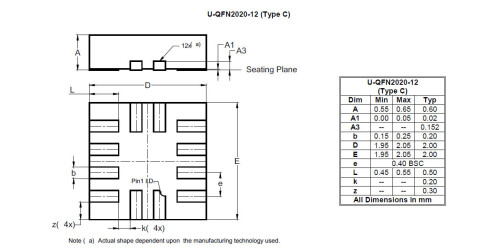

PI3USB9201ZTAEX Active U-QFN2020-12 LFGP 3000 T&R Request Sample

Environmental Compliance Legend:
LFF: Pb-Free Finish and RoHS 5/6
TLFP: Totally Pb-Free Product and RoHS 6/6
LFGP: Pb-free Finish and Green Product, RoHS 5/6 and Halogen Free
TPGP: Totally Pb-Free and Green Product, RoHS 6/6 and Halogen Free
GREEN: Halogen-free and RoHS compliant
RoHS: RoHS compliant but NOT halogen-free
