Description

The PAM2306D is a dual step-down current mode, DC-DC converter. At heavy load, the constant-frequency PWM control performs excellent stability and transient response. To ensure the longest battery life in portable applications, the PAM2306D provides a powersaving Pulse-Skipping Modulation (PSM) mode to reduce quiescent cur rent under light load operation. The PAM2306D supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH cell, USB, and other standard power sources. The dual output voltages are available for adjustment. All versions employ internal power switch and synchronous rectifier to minimize external part count and realize high efficiency. During shutdown, the input is disconnected from the output and the shutdown current is less than 0.1μA. Other key features include under-voltage lockout to prevent deep battery discharge.

Application(s)

Cellular Phone

Portable Electronics

Personal Information Appliances

Wireless and DSL Modems

MP3 Players

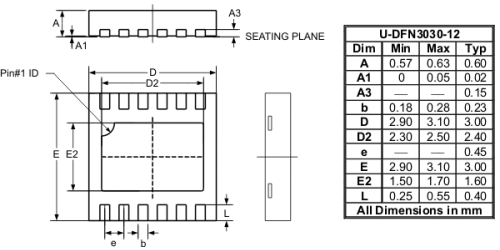

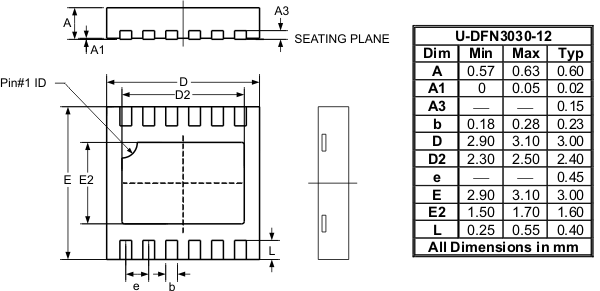

Specifications & Technical Documents

Product Parameters

Type	Buck
Efficiency (%)	95 %
HS RDS(ON) (mΩ)	300 mΩ
LS RDS(ON) (mΩ)	350 mΩ
Frequency Typ (Hz)	1500 kHz
MinimumInput Voltage (V)	2.5 V
MaximumInput Voltage (V)	5.5 V
Output Current (A)	1 A
Output Voltage (V)	ADJ(0.6 to VIN) V
Quiescent Current Typ (μA)	0.04 mA
Shutdown Current Typ (µA)	0.1 µA
