FS2ME(LS)

2.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • For surface mounted applications.
  • Low reverse leakage current
  • Low forward voltage drop
  • High current capability
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Product Type Standard Recovery Rectifier
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 2 A
Peak ForwardSurge CurrentIFSM(A) 50 A
Peak RepetitiveReverse VoltageVRRM (V) 1000 V
Forward VoltageDrop VF(V) 1.1 V
@ IF (A) 2 A
Maximum ReverseCurrent IR (µA) 5 µA
@ VR (V) 1000 V

Related Content

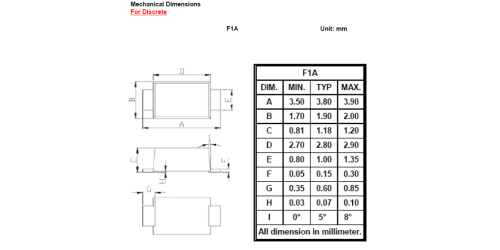

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2549 2021-10-19 2022-04-19 Device End of Life (EOL)
