DTH8S06FP

HYPER-FAST EPITAXIAL RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Suitable for rectification and freewheeling for SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment, and telecommunication applications.

Feature(s)

  • Soft, Hyper-Fast Switching Capability
  • Glass Passivated Die Construction
  • Especially Suited for Continuous Conduction Mode Power Factor Corrections
  • High-Reliability and Efficiency
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Specifications & Technical Documents

Product Parameters

AEC Qualified

Yes

Compliance (Only Automotive Supports PPAP)

Standard

Product Type

HYPER-FAST EPITAXIAL RECTIFIER

Configuration

Single

MaximumAverageRectifiedCurrent IO (A)

8 A

Maximum Peak Forward Surge Current IFSM (A)

70 A

Peak RepetitiveReverse VoltageVRRM (V)

600 V

Forward VoltageDrop VF(V)

3.4 V

@ IF (A)

8 A

Maximum ReverseCurrent IR (µA)

15 µA

@ VR (V)

600 V

Reverse RecoveryTime trr (ns)

25 ns

Related Content

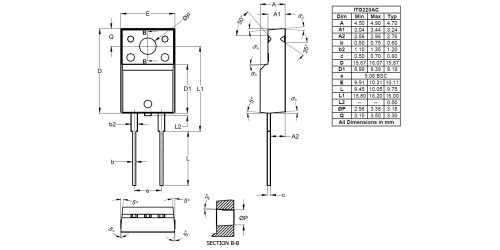

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2691 2024-08-16 2024-11-14 Additional Wafer Sources and Transfer of Wafer Manufacturing Site for Select Discrete Products
