DMTH48M3SFVWQ

40V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Datasheet

Contact Sales

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: motor controls, power-management functions, and DC-DC converters.

Feature(s)

Excellent Q_GD ×R_DS(ON)Product (FOM)
Low R_DS(ON)— Ensures On-State Losses Minimized
100% Unclamped Inductive Switching, Test in Production — Ensures More Reliable and Robust End Application
Wettable Flank for Improved Optical Inspection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DMTH48M3SFVWQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

Motor controls
Power-management functions
DC-DC converters

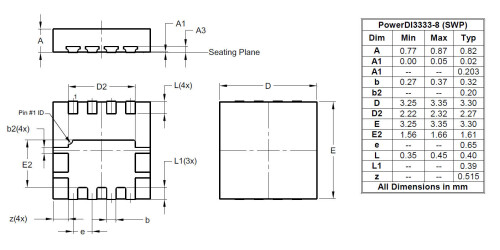

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Automotive
Polarity	N
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	40 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_A = +25°C (A)	14.6 A
\|I_DS\| @T_C = +25°C (A)	52.4 A
P_D @T_A = +25°C (W)	2.82 W
P_D @T_C = +25°C (W)	36.6 W
R_DS(ON)Max@ V_GS(10V)(mΩ)	8.9 mΩ
\|V_GS(TH)\| Max (V)	4 V
Q_G Typ @ \|V_GS\| = 10V (nC)	12.1 nC
C_ISS Typ (pF)	897 pF
C_ISS Condition @\|V_DS\| (V)	20 V
