DMP2039UFDE4

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Description

This new generation MOSFET has been designed to minimize the onstate resistance (R_DS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

Load Switching

Battery Management Application

Power Management Functions

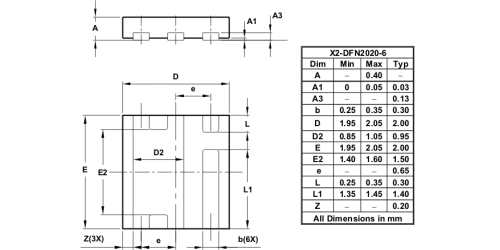

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	P
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	25 V
\|V_GS\| (±V)	8 ±V
\|I_DS\| @T_A = +25°C (A)	7.3 A
P_D @T_A = +25°C (W)	2.4 W
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	26 mΩ
R_DS(ON)Max@ V_GS(2.5V)(mΩ)	33 mΩ
R_DS(ON)Max@ V_GS(1.8V)(mΩ)	40 mΩ
\|V_GS(TH)\| Min (V)	0.4 V
\|V_GS(TH)\| Max (V)	1 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	28.2 nC
C_ISS Typ (pF)	2530 pF
C_ISS Condition @\|V_DS\| (V)	15 V
