DMN62D1SFBWQ

60V N-Channel Enhancement Mode MOSFET

Datasheet

Contact Sales

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: load switches, portable applications, and power-management functions.

Feature(s)

Low On-Resistance
Low Gate Threshold Voltage
Fast Switching Speed

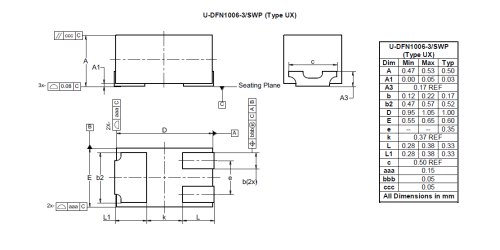

Ultra-Small Surface-Mount Package
ESD Protected
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DMN62D1SFBWQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

Load switches
Portable applications
Power-management functions

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Automotive
Polarity	N
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	60 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_A = +25°C (A)	0.538 A
P_D @T_A = +25°C (W)	0.8 W
R_DS(ON)Max@ V_GS(10V)(mΩ)	1400 mΩ
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	1600 mΩ
\|V_GS(TH)\| Min (V)	1.3 V
\|V_GS(TH)\| Max (V)	2.3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	0.8 nC
Q_G Typ @ \|V_GS\| = 10V (nC)	1.4 nC
C_ISS Typ (pF)	43 pF
C_ISS Condition @\|V_DS\| (V)	40 V

Technical Documents

SPICE Model

DMN62D1SFBWQ.spice.txt

Recommended Soldering Techniques

TN1.pdf
