D3V3L2B3LP10

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players

Feature(s)

  • Excellent Clamping Capability
  • Peak pulse surge current Ipp up to 5A
  • Superior ESD protection exceeding +-25kV per IEC61000-4-2 standard
  • Lead Free Finish/RoHS Compliant

Application(s)

LCD TV, Computers and Peripheral

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Maximum Peak Pulse Current IPP @ 8x20±s Max 5
AEC Qualified No
Configuration Dual (Bi-Directional)
Channel Input CapacitanceCT Typ (pF) 10 pF
Reverse Standoff Voltage VRWM(V) 3.3 V
Breakdown VoltageVBR Min(V) 3.8 V
Typ Reverse Leakage Current IR @ VRWM Max(µA) 0.01 µA
Maximum Clamping Voltage @ MaxPeak Pulse CurrentVC(V) 7 V
VESD IEC61000-4-2 Contact Discharge(kV) 25 kV

Related Content

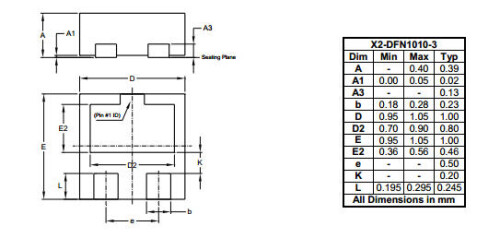

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2495 2021-03-31 2021-07-01 Qualification of Additional Assembly & Test Sites and Additional Wafer Back Grinding and Back Metal Process
