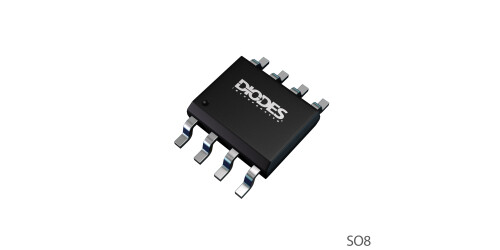

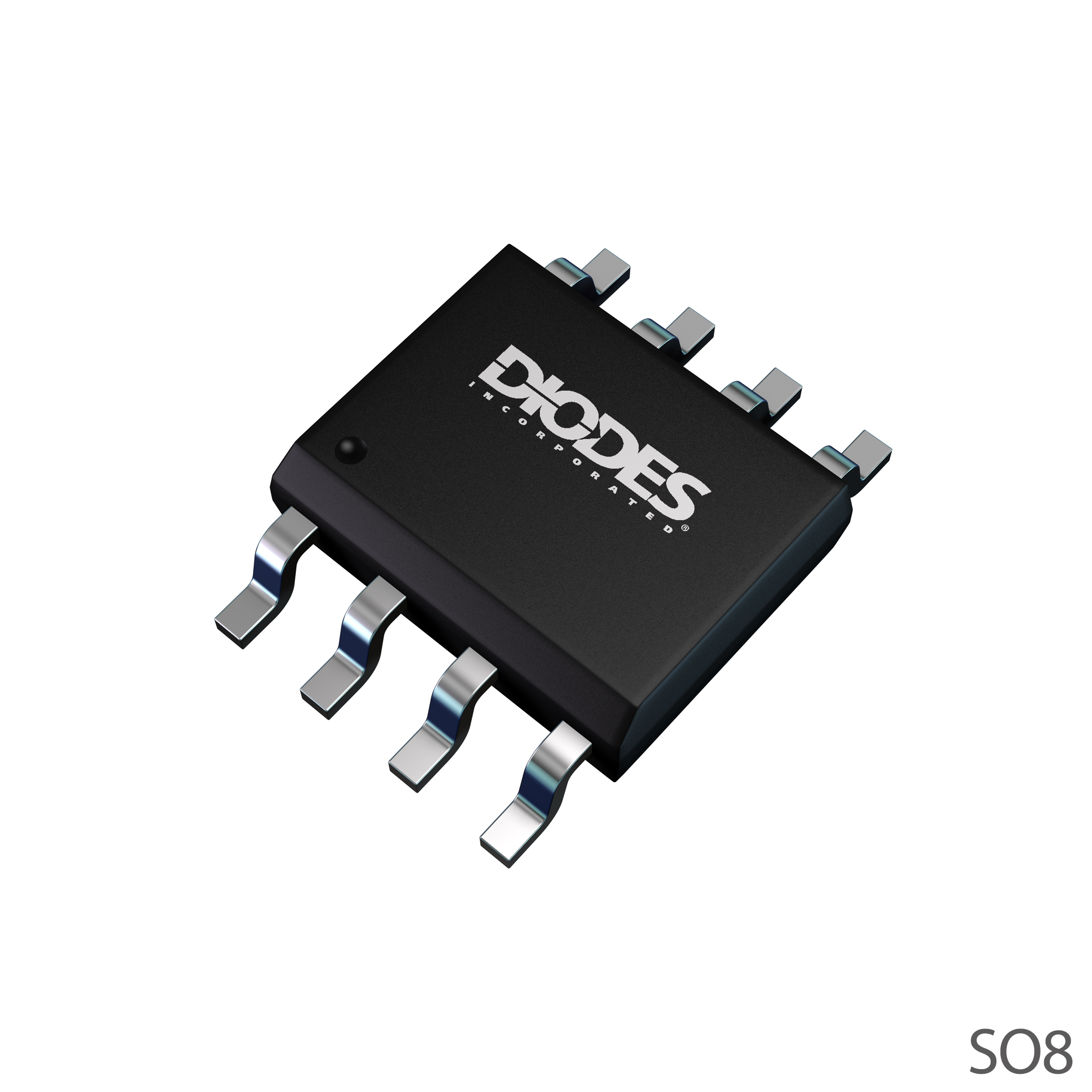

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. SO-8 (Standard)
Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. MSOP-8
Low-Noise, Low Quiescent Current, Precision Operational Amplifier
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
The AS2376 is a low noise (9.5nV/√Hz ), low offset (25μV, maximum), operational amplifier that is precision optimized using post-package trim. With a 5.5MHz bandwidth, the device is suitable for a wide array of filtering and control applications.
The low operating voltage range, low quiescent current of 950μA (maximum), and excellent PSRR allow for noise-sensitive applications which are supplied from noisy low-voltage rails.
The dual AS2376 is offered in the SO-8 and MSOP-8 package, specified for operation from -40°C to +125°C.
Compliance (Only Automotive Supports PPAP) |
Standard |
|---|---|
AEC Qualified |
Yes |
Number of Channels |
2 |
Minimum Supply Voltage (V) |
2.2 V |
Maximum Supply Voltage (V) |
5.5 V |
Supply Current @ 5V (per Op Amp) (mA) |
0.012 mA |
Input Offset Voltage typ (mV) |
0.026 mV |
Input Bias Current typ (nA) |
0.07 nA |
Minimum Input Common Mode Voltage (V) |
V- -0.1 V |
Maximum Input Common Mode Voltage (V) |
V+ +0.1 V |
Output Current Source (mA) |
5 mA |
Output Current Sink (mA) |
25 mA |
Rail-Rail |
Input/ Output |
Operating Ambient Temperature Range (°C) |
-40 to 125 °C |
Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2770 | 2025-10-30 | 2025-10-30 | Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products |
