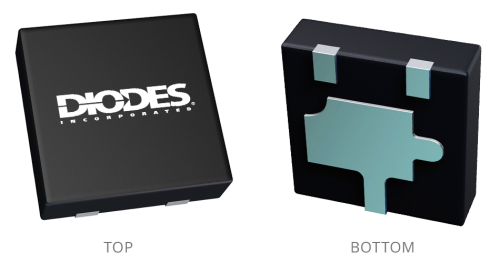

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

AH1888 (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


AH1888 is with two Hall effect plates and dual CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). The total operation power is down to 15uW in the 1.8V supply. Either north or south pole of sufficient strength will turn the output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operate point (Bop), the output1 will be turned on (low), the output 1 is held until B is lower than release point (Brp), then turned off.


  • Cellular phone
  • PDA
  • Cordless phone

Product Specifications

Product Parameters

# Outputs 1
ActiveHigh orLow Low
Compliance (Only Automotive supports PPAP) No
Average Supply Current (µA) 7
Max OperatingPoint ±Bop(Guass) 79
Max ReleasePoint ±Brp(Guass) N/A
Min OperatingPoint ±Bop (Guass) N/A
Min ReleasePoint ±Brp(Guass) 35
Operating Ambient Temperature Range (°C) -40 to 85
Operating Voltage (V) 1.65 to 3.3
Output Type Push-Pull
AEC Qualified No
Sensitivity Medium
Typ OperatingPoint ±Bop(Guass) 61
Typ ReleasePoint ±Brp(Guass) 53
