Back to Schottky (.5A and Above)

SDM4A40EP3

4A SCHOTTKY BARRIER RECTIFIER SURFACE MOUNT PACKAGE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The SDM4A40EP3 is a 40V 4A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a small surface mount package that occupies only 1.28mm2 board space with very low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space.

Feature(s)

  • Low forward voltage (VF) minimizes conduction losses and improves efficiency
  • Reduced High-Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen, Antimony and Beryllium Free. “Green” Device
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Mechanical Data

Application(s)

  • Blocking Diodes
  • Boost Diodes
  • Switching Diodes
  • Reverse Protection Diodes

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 4 A
Peak RepetitiveReverse VoltageVRRM (V) 40 V
Peak ForwardSurge CurrentIFSM(A) 32 A
Forward VoltageDrop VF(V) 0.57 V
@ IF (A) 4 A
Maximum ReverseCurrent IR (µA) 150 µA
@ VR (V) 40 V

Related Content

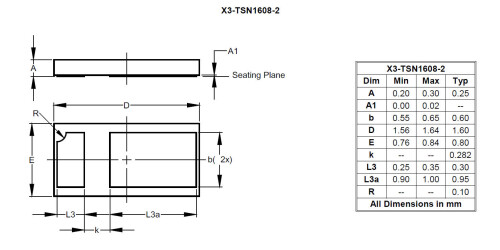

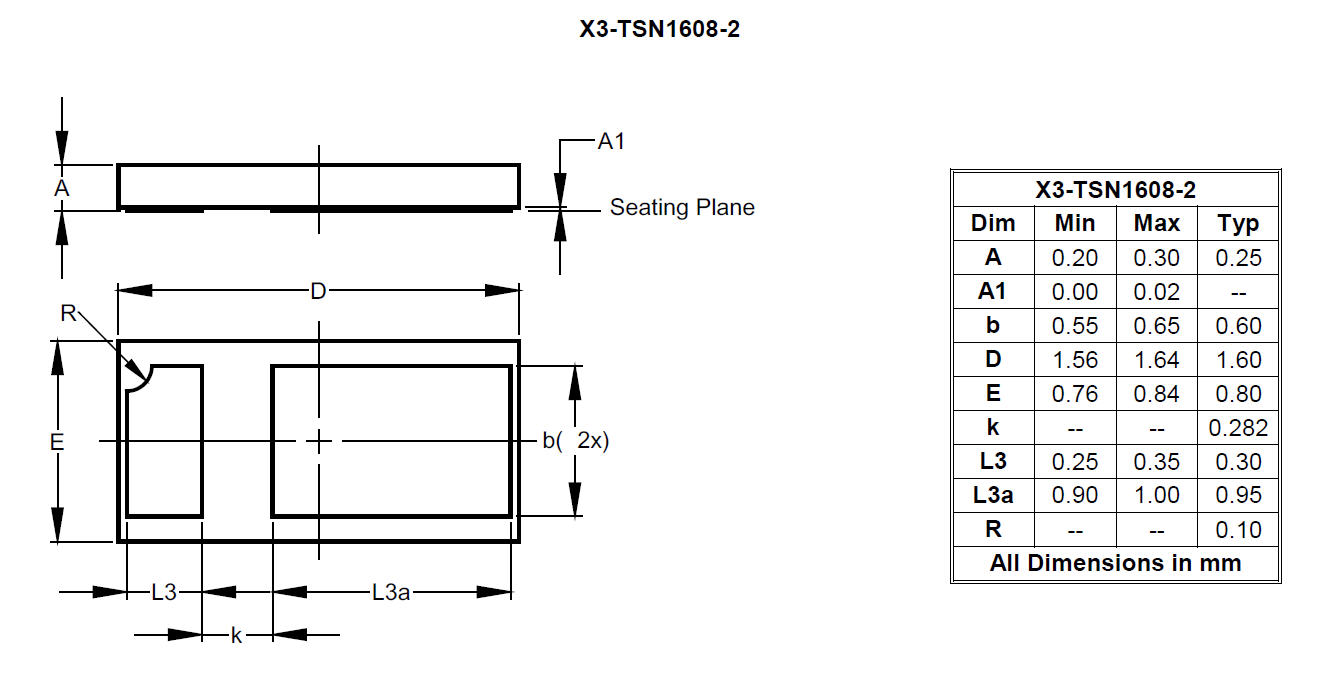

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2560 2021-12-16 2021-12-16 Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
