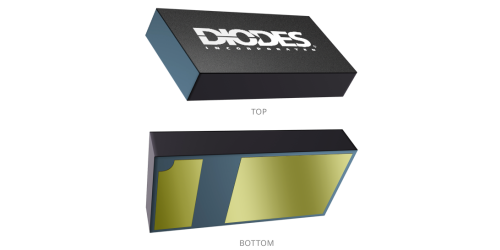

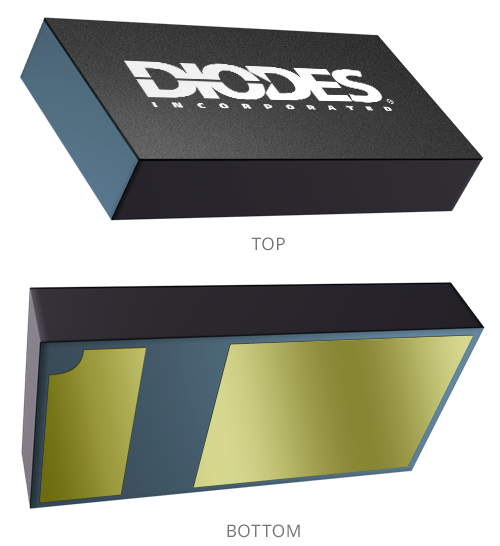

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. X3-WLB1608-2

Back to SDM2U20CSP

SDM2U20CSP

2A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE

Datasheet

Contact Sales

Description

The SDM2U20CSP is a 20-volt 2A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a compact chip scale package (CSP) that occupies only 1.28 mm² board-space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space. It is ideally suited for use in portable applications.

Application(s)

Blocking Diode
Boost Diode
Switching Diode
Reverse Protection Diode

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	No
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	2 A
@ TerminalTemperature TT (ºC)	N/A ºC
Peak RepetitiveReverse VoltageV_RRM(V)	20 V
Peak ForwardSurge CurrentI_FSM(A)	20 A
Forward VoltageDrop V_F(V)	0.47 V
@ I_F(A)	2 A
Maximum ReverseCurrent I_R(µA)	150 µA
@ V_R(V)	20 V
TotalCapacitance C_T(pF)	115 pF

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2560	2021-12-16	2021-12-16	Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
