SDM2A20CSP

2.0A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE

Datasheet

Contact Sales

Description

The SDM2A20CSP is a 20-volt 2A Schottky barrier rectifier that is optimized for low forward voltage drop and low leakage current. Housed in a compact chip scale package (CSP), the SDM2A20CSP occupies only 0.84 mm² board-space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space. It is ideally suited for use in portable applications as a:

Blocking Diode
Boost Diode
Switching Diode
Reverse Protection Diode

Feature(s)

Low forward voltage (V_F) minimizes conduction losses and improves efficiency.
Reduced high temperature reverse leakage; Increased reliability against thermal runaway failure in high temperature operation.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

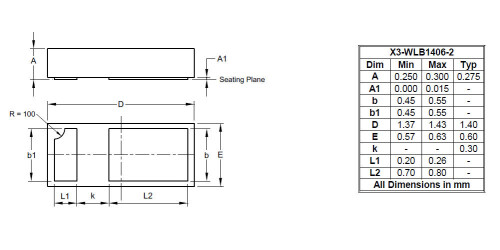

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive supports PPAP)	Standard
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	2 A
@ TerminalTemperature TT (ºC)	N/A ºC
Peak RepetitiveReverse VoltageV_RRM(V)	20 V
Peak ForwardSurge CurrentI_FSM(A)	20 A
Forward VoltageDrop V_F(V)	0.53 V
@ I_F(A)	2 A
Maximum ReverseCurrent I_R(µA)	80 µA
@ V_R(V)	20 V
TotalCapacitance C_T(pF)	70 pF

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2560	2021-12-16	2021-12-16	Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
