DMTH47M2SPSWQ

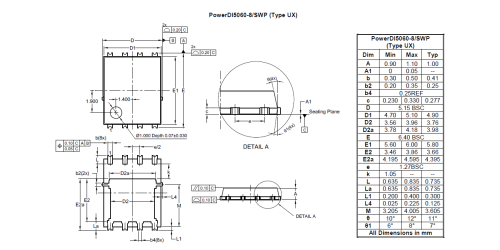

40V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8

Contact Sales

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP.

Rated to +175°C – Ideal for High Ambient Temperature
Environments
100% Unclamped Inductive Switching (UIS) Test in Production – Ensures More Reliable and Robust End Application
High Conversion Efficiency
Low RDS(ON) – Minimizes Power Losses
Wettable Flank for Improved Optical Inspection
Fast Switching Speed
Low Input Capacitance
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
The DMTH47M2SPSWQ is suitable for automotive applications
requiring specific change control; this part is AEC-Q101
qualified, PPAP capable, and manufactured in IATF 16949
certified facilities.
https://www.diodes.com/quality/product-definitions/

Product Specifications

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Automotive
Polarity	N
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	40 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_C = +25°C (A)	73 A
P_D @T_A = +25°C (W)	3.3 W
P_D @T_C = +25°C (W)	68 W
R_DS(ON)Max@ V_GS(10V)(mΩ)	7.5 mΩ
\|V_GS(TH)\| Max (V)	4 V
Q_G Typ @ \|V_GS\| = 10V (nC)	12.1 nC
C_ISS Typ (pF)	897 pF
C_ISS Condition @\|V_DS\| (V)	20 V

SPICE Model

DMTH47M2SPSWQ.spice.txt

Recommended Soldering Techniques

TN1.pdf
