DMN2400UFDQ (NRND)

NRND = Not Recommended for New Design

20V N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power anagement applications.

Feature(s)

  • Low On-Resistance
  • Very low Gate Threshold Voltage, 1.0V Max.
  • Low Input Capacitance
  • Fast Switching Speed
  • ESD Protected Gate

Application(s)

  • Power Management Functions
  • Battery Operated Systems and Solid-State Relays
  • Load Switch
  • DRL
  • Fog Lights
  • ECU
  • Rear Cluster
  • ABS

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive supports PPAP) Automotive
CISS Condition @|VDS| (V) 16
CISS Typ (pF) 37
Compliance (Only Automotive(Q) supports PPAP) Automotive
Configuration Single
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 0.9
PD @TA = +25°C (W) 0.85
Polarity N
Compliance (Only Automotive supports PPAP) Automotive (Q)
QG Typ @ |VGS| = 4.5V (nC) 0.5
AEC Qualified Yes
RDS(ON)Max@ VGS(1.8V)(mΩ) 1000
RDS(ON)Max@ VGS(2.5V)(mΩ) 800
RDS(ON)Max@ VGS(4.5V)(mΩ) 600
|VDS| (V) 20
|VGS| (±V) 12
|VGS(TH)| Max (V) 1

Related Content

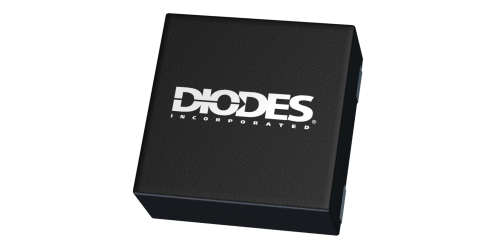

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Purchase & Availablity

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2722 2025-02-11 2025-05-12 Change Lead Frame Type from SOT-23R to SOT-23T and Qualify Additional Diodes Internal Assembly and Test Site (CAT) for Select Automotive Products
