DMC2004LPK

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	Yes
Polarity	N+P
ESD Diodes (Y|N)	Yes
|VDS| (V)	20, 20 V
|VGS| (±V)	8, 8 ±V
|IDS| @TA = +25°C (A)	0.75, 0.6 A
PD @TA = +25°C (W)	0.5 W
RDS(ON)Max@ VGS(4.5V)  (mΩ)	550, 900 mΩ
RDS(ON)Max@ VGS(2.5V)  (mΩ)	700, 1400 mΩ
RDS(ON)Max@ VGS(1.8V)  (mΩ)	900, 2000 mΩ
|VGS(TH)| Min (V)	0.5, 0.5 V
|VGS(TH)| Max (V)	1, 1 V
CISS Typ (pF)	95, 85 pF
CISS Condition @|VDS| (V)	16, 16 V

Related Content

Packages

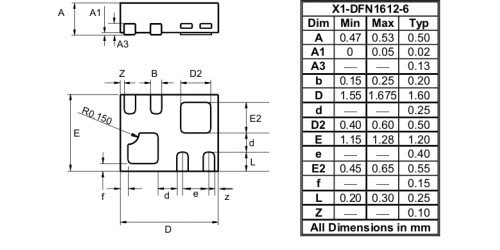

X1-DFN1612-6

---

Technical Documents

SPICE Model

DMC2004LPK.spice.txt

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

RoHSFile

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
