D3V3F8U9LP3810

8 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Datasheet

Contact Sales

Description

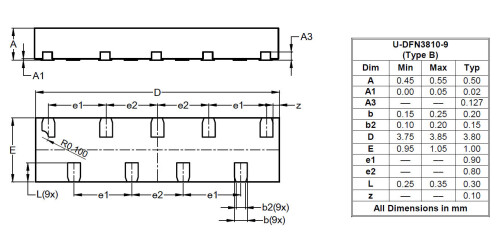

The D3V3F8U9LP3810 is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in U-DFN3810-9 (Type A) package and have high ESD surge capability, low ESD clamping voltage and ultra-low capacitance.

Feature(s)

Clamping Voltage: 5V at 16A TLP
IEC 61000-4-2 (ESD): Air — ±12kV, Contact — ±12kV
IEC 61000-4-5 (Lightning): 5A (8/20µs)
8 Channels of ESD Protection
Ultra-Low Channel Input Capacitance of 0.55pF Typical
TLP Dynamic Resistance: 0.25Ω
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Application(s)

USB 3.0
USB 3.1
Serial ATA
Display port

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	Yes
Configuration	Octal (Unidirectional)
Channel Input CapacitanceC_T Typ (pF)	0.45 pF
Reverse Standoff Voltage V_RWM_(V)	3.3 V
Breakdown VoltageV_BR Min(V)	5.5 V
Typ Reverse Leakage Current I_R @ V_{RWM Max}_(µA)	0.1 µA
VESD IEC61000-4-2 Contact Discharge(kV)	8 kV

Technical Documents

Recommended Soldering Techniques

TN1.pdf
