Package: X1QFN (XEA32)

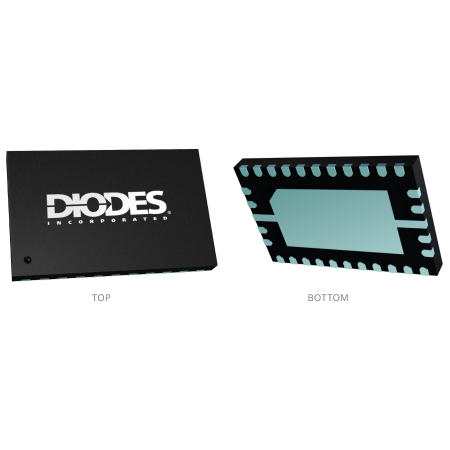

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

X1 QFN2845 32 XEA32
NameX1QFN (XEA32)
POD NumberPD-2259
JEDEC Pub 95MO-288 (Ref.)
Pin Pitch (MM)0.4
Length (MM)2.85
Width (MM)4.5
Height (MM)0.5
Theta JA (still air) °C/Watt34.29
ThetaJC (°C/Watt)9.5
Package File XEA32.pdf
Products using this package

Parts Icon PI2DPT1021

Parts Icon PI2DPT821

Parts Icon PI2EQX22024
